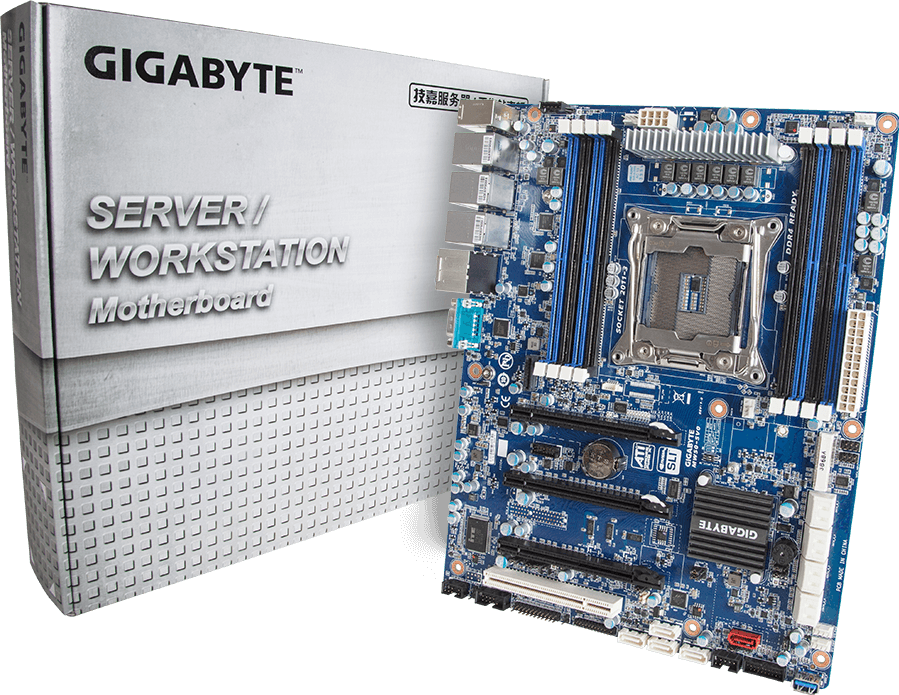

MW50-SV0Legacy | Software updates supported
Intel® C612 chipset
- Intel® Xeon® processor E5-1600 & E5-2600 V3 / V4 product families
- 8 x RDIMM/LRDIMM ECC DDR4 DIMM slots
- 3 x GbE LAN port (Intel® I210 + I218)
- Supports 2-way, 3-way NVIDIA® SLI™ / AMD® CrossFireX™
- 13 x SATA III 6Gb/s
- 1 x mSATA slot
- 1 x USB 3.0 header + 1 x internal USB 3.0 port
Specifications
Form Factor
ATX
305W x 244D (mm)
305W x 244D (mm)
CPU
Supports:
- Intel® Xeon® E5-2600 V3 processors
- Intel® Xeon® E5-1600 V3 processors
- Intel® Xeon® E5-2600 V4 processors
- Intel® Xeon® E5-1600 V4 processors
Socket
1 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C612
Memory
8 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
LAN
2 x GbE LAN ports (Intel® I210)
1 x GbE LAN port (Intel® I218)
1 x GbE LAN port (Intel® I218)
Video
-
Audio
Realtek® ALC887 controller
Supports 2/4/5.1/7.1 channel configurations
Supports 2/4/5.1/7.1 channel configurations
SAS
-
SATA
8 x SATA III 6Gb/s ports
4 x SATA III 6Gb/s ports (Marvell 88SE9230® controller)
1 x SATA III 6Gb/s port supporting SATA DOM
1 x mSATA 6Gb/s slot
4 x SATA III 6Gb/s ports (Marvell 88SE9230® controller)
1 x SATA III 6Gb/s port supporting SATA DOM
1 x mSATA 6Gb/s slot
RAID
Intel® SATA RAID 0/1/10/5
Marvell® SATA RAID 0/1/10
Marvell® SATA RAID 0/1/10
Expansion Slots
2 x PCIe x16 (Gen3 x16 bus) slots
1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x4 mezzanine card slot
1 x PCI slot
Support NVIDIA® SLI™ technologies
1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x4 mezzanine card slot
1 x PCI slot
Support NVIDIA® SLI™ technologies
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
4 x System fan headers
1 x USB 3.0 vertical Type A
1 x USB 3.0 header
1 x USB 2.0 header
1 x Front audio header
1 x S/PDIF-In header
1 x PMBus connector
2 x SATA SGPIO headers
1 x Clear CMOS jumper
13 x SATA III 6Gb/s ports
1 x SATA DOM jumper
1 x Chassis intrusion header
1 x Front panel header
1 x HDD back plane board header
1 x Serial header
1 x TPM header
1 x JPI header
1 x BIOS recovery jumper
2 x PCIe switch jumpers
1 x PMBus selection jumper
1 x 8-pin ATX 12V power connector
1 x CPU fan header
4 x System fan headers
1 x USB 3.0 vertical Type A
1 x USB 3.0 header
1 x USB 2.0 header
1 x Front audio header
1 x S/PDIF-In header
1 x PMBus connector
2 x SATA SGPIO headers
1 x Clear CMOS jumper
13 x SATA III 6Gb/s ports
1 x SATA DOM jumper
1 x Chassis intrusion header
1 x Front panel header
1 x HDD back plane board header
1 x Serial header
1 x TPM header
1 x JPI header
1 x BIOS recovery jumper
2 x PCIe switch jumpers
1 x PMBus selection jumper
Rear I/O
4 x USB 3.0
4 x USB 2.0
1 x PS/2
1 x Serial
3 x RJ45
5 x Audio jacks
1 x Optical S/PDIF-Out
4 x USB 2.0
1 x PS/2
1 x Serial
3 x RJ45
5 x Audio jacks
1 x Optical S/PDIF-Out
TPM
1 x TPM header
OS Supported
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Windows 7 Ultimate SP1 (x86/x64)
Windows 8 Enterprise (x86/x64)
Windows 8.1 Enterprise (x86/x64)
Windows 10 (x64)
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Windows 7 Ultimate SP1 (x86/x64)
Windows 8 Enterprise (x86/x64)
Windows 8.1 Enterprise (x86/x64)
Windows 10 (x64)
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Board Management
Intel® Active Management Technology
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MW50-SV0
1 x Driver CD
1 x I/O shield
1 x User manual
2 x SATA III 6Gb/s cables (500mm)
1 x Mini-PCIe card bracket
1 x 2-way SLI™ bridge
1 x 3-way SLI™ bridge
Box dimensions: 360 x 330 x 80 mm
1 x Driver CD
1 x I/O shield
1 x User manual
2 x SATA III 6Gb/s cables (500mm)
1 x Mini-PCIe card bracket
1 x 2-way SLI™ bridge
1 x 3-way SLI™ bridge
Box dimensions: 360 x 330 x 80 mm
Bulk Packaging Content
10 x MW50-SV0
10 x I/O shields
Carton dimensions: 473 x 600 x 495 mm
10 x I/O shields
Carton dimensions: 473 x 600 x 495 mm
Reference Numbers
Retail: 9AW50SV0MR-00
Bulk: 9MW50SV0NR-00
Bulk: 9MW50SV0NR-00
