Intel® I/O Expansion Board Reference Design for Vending Machine

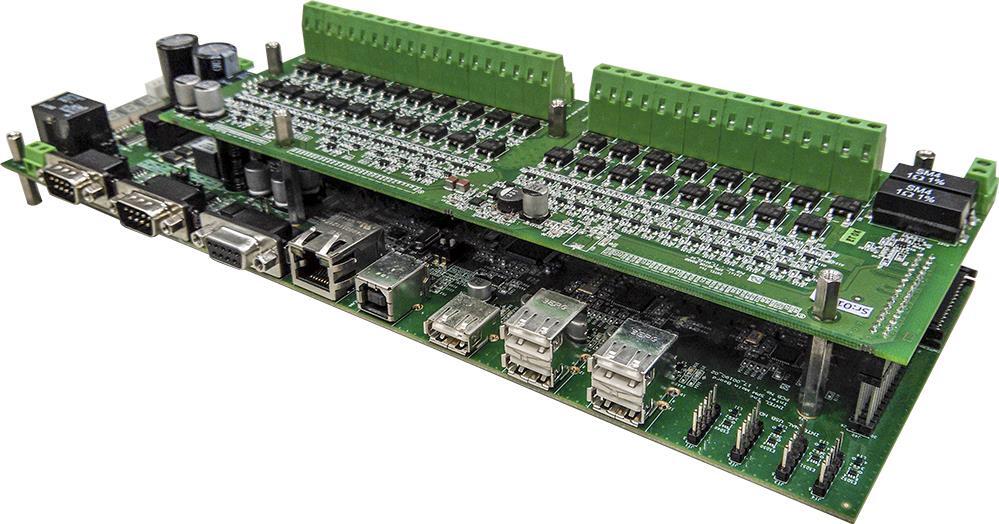

- The GC-SSP is a dual board solution providing interaction abilities between the GB-TCV1A and traditional vending machines
- Supports many different motor configurations
- Supports protocol conversion and provides a high I/O flexibility
- 300 x 98 mm
- Specifications
Specifications
Ports
2 x Serial
1 x VGA
1 x RJ45
1 x PC USB up stream
5 x USB 2.0
1 x VGA
1 x RJ45
1 x PC USB up stream
5 x USB 2.0
Interface
1 x Internal I/O header
1 x External I/O header
4 x USB 2.0 headers
1 x 24V ang. voltage header
1 x 24V GPI header
1 x 1WIRE header
1 x I2C header
1 x SPI header
1 x CC talk type7 header
1 x CC talk type3 header
1 x MDB master connector
1 x MDB supply connector
2 x System fan headers
1 x External I/O header
4 x USB 2.0 headers
1 x 24V ang. voltage header
1 x 24V GPI header
1 x 1WIRE header
1 x I2C header
1 x SPI header
1 x CC talk type7 header
1 x CC talk type3 header
1 x MDB master connector
1 x MDB supply connector
2 x System fan headers
Dimensions
300 x 98 mm
Format
Proprietary
