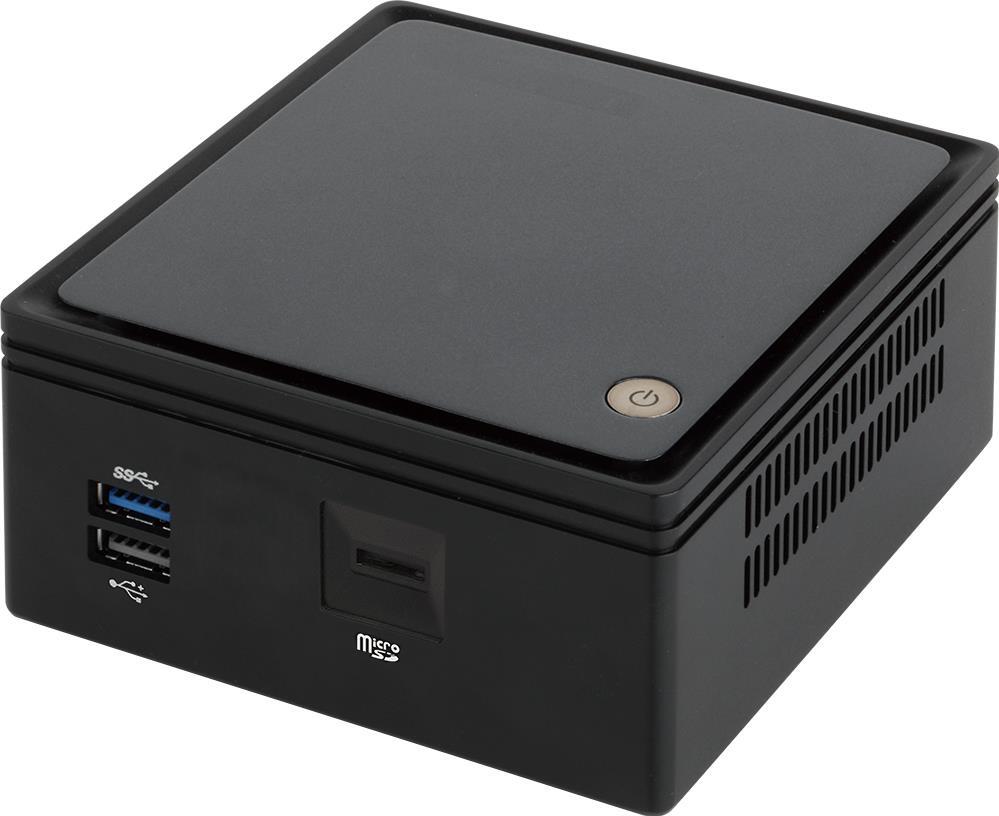

GB-KMA3Legacy | Software updates supported
Intel® Reference Design for IoT
- Intel® Atom™ processor E3815
- 4GB of eMMC memory
- 1 x SO-DIMM DDR3L slot
- 2 x GbE LAN (Realtek RTL8111G)
- 1 x 2.5" HDD/SSD internal bay
- 1 x MicroSD card slot
Specifications
Operating Properties
Operating temperature: 0°C to 35°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -20°C to 60°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -20°C to 60°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Intel Atom processor E3815
Single core, 22nm
1.46GHz
512KB cache
5W TDP
Single core, 22nm
1.46GHz
512KB cache
5W TDP
Socket
1 x BGA 1170
Memory
1 x SO-DIMM slot
1.35V DDR3L memory
Up to 8GB
1067Mhz
Pre-installed:
- 1 x Crucial CT25664BF160B
- 2GB
- 1600MHz
1.35V DDR3L memory
Up to 8GB
1067Mhz
Pre-installed:
- 1 x Crucial CT25664BF160B
- 2GB
- 1600MHz
Flash Memory
4GB of eMMC memory
LAN
2 x GbE LAN ports (Realtek RTL8111G)
Video
Intel HD graphics
Max. resolution via HDMI: 1920 x 1080 @ 60Hz
Max. resolution via VGA: 2560 x 1600 @ 60Hz
Max. resolution via HDMI: 1920 x 1080 @ 60Hz
Max. resolution via VGA: 2560 x 1600 @ 60Hz
Audio
Realtek ALC283
SATA
1 x SATA II 3Gb/s port
Expansion Slots
1 x Half-size Mini-PCIe slot
Pre-installed:
- 1 x WiFi + Bluetooth card
- Azurewave AW-NB159H
Pre-installed:
- 1 x WiFi + Bluetooth card
- Azurewave AW-NB159H
Internal I/O
1 x SATA II 3Gb/s port
1 x LPC (80h) header
1 x USB 2.0 header
1 x TPM header
1 x SATA power connector
1 x Battery connector
1 x LPC (80h) header
1 x USB 2.0 header
1 x TPM header
1 x SATA power connector
1 x Battery connector
Rear I/O
1 x HDMI 1.4a
2 x RJ45
1 x DC-In
1 x Kensington lock slot
2 x RJ45
1 x DC-In
1 x Kensington lock slot
TPM
1 x TPM header
OS Supported
Windows 7 32bit / 64bit
Windows 8.1 32bit / 64bit
Windows 8.1 32bit / 64bit
Power Supply
AC 100~240V
12V DC-in
30W/2.5A
12V DC-in
30W/2.5A
Packaging Content
1 x Crucial® CT25664BF160B
1 x Azurewave® AW-NB159H
1 x Quick starting guide
1 x Mini-PCIe card bracket
1 x VESA mount bracket
1 x Power plug adapter (US)
1 x 36W power adapter
1 x Azurewave® AW-NB159H
1 x Quick starting guide
1 x Mini-PCIe card bracket
1 x VESA mount bracket
1 x Power plug adapter (US)
1 x 36W power adapter
Ordering Information
10 pieces carton: 9BKMA3AWMR-00
Packaging dimensions: 411 x 383 x 200mm
Packaging dimensions: 411 x 383 x 200mm
Storage
1 x 2.5" HDD/SSD internal bay
Supports 7.0 & 9.5 mm HDD/SSD
Supports 7.0 & 9.5 mm HDD/SSD
Front I/O
1 x USB 3.0
1 x USB 2.0
1 x MicroSD card slot
1 x USB 2.0
1 x MicroSD card slot
System Fans
Fanless
Dimension
107.6(W) x 56.1(H) x 114.4(D) mm
Motherboard
MZBAYAG
100 x 105 mm
100 x 105 mm
Weight
400g
Side I/O
1 x VGA
1 x Serial
1 x Headphone / MIC jack
1 x Serial
1 x Headphone / MIC jack
