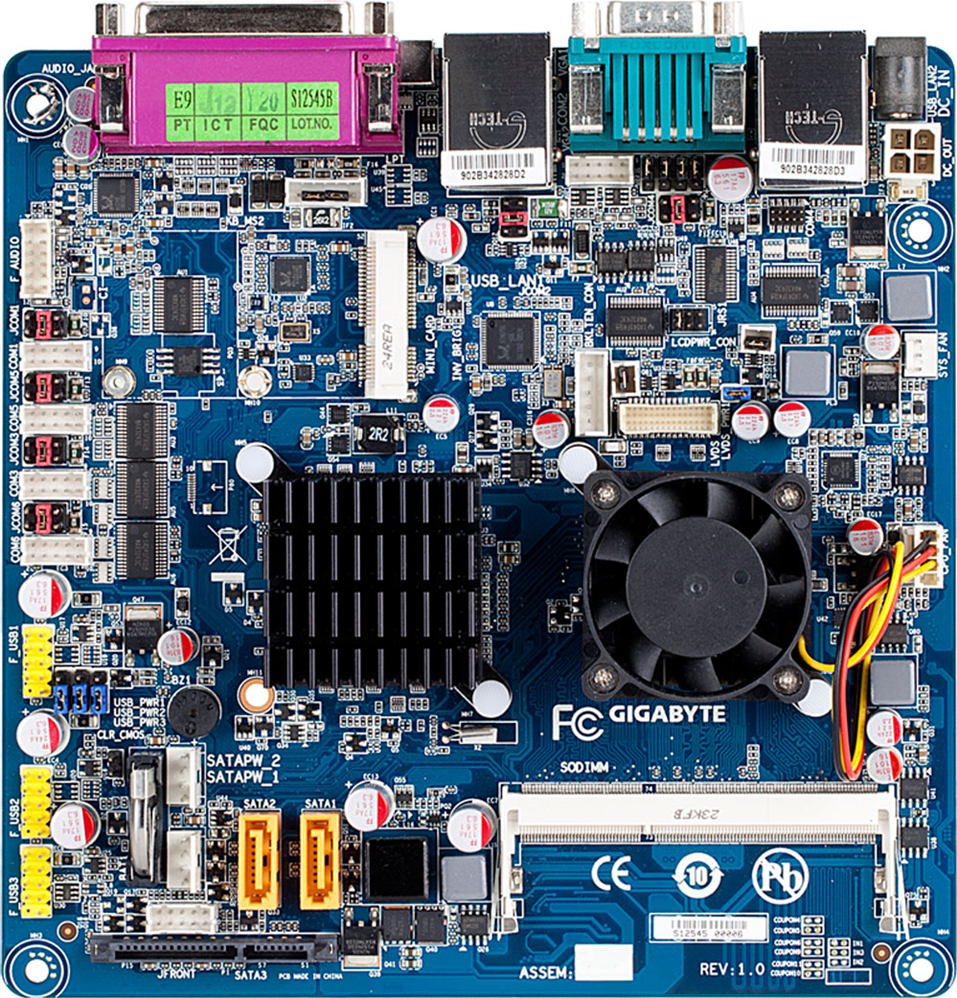

MNIC8CILegacy | Firmware updates supported
Intel® ICH8M chipset
- Mini-ITX form factor
- Intel® Atom™ D525 1.8GHz processor
- 1 x SO-DIMM, up to 4GB 800MHz
- 2 x GbE LAN ports (Realtek® RTL8111E)
- 6 x COM ports (1 x external, 5 x internal)
- 1 x RJ11 for cash drawer
- 3 x SATA II 3Gb/s ports
- Specifications
- Support
Specifications
Form Factor
Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
Operating Properties
Operating temperature: -10°C to 60°C
Operating humidity: 0-85% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-85% (non-condensing)
CPU
Intel® Atom™ D525
2 cores / 4 threads
1.8 GHz
13W max. TDP
2 cores / 4 threads
1.8 GHz
13W max. TDP
Socket
1 x BGA 559
Chipset
Intel® ICH8M
Memory
1 x SO-DIMM DDR3 slot
Single channel memory architecture
Up to 4GB
1.5V modules: 800 MHz
Single channel memory architecture
Up to 4GB
1.5V modules: 800 MHz
LAN
2 x GbE LAN ports (Realtek® RTL8111E)
Video
Intel® GMA3150
Audio
Realtek® ALC269 controller
Supports 2/4 channel configurations
Supports 2/4 channel configurations
SATA
2 x SATA II 3Gb/s ports
RAID
-
Expansion Slots
1 x Full-size Mini-PCIe slot
Internal I/O
3 x USB 2.0 headers
5 x Serial (RI/5V/12V) headers
1 x Front audio header
1 x LVDS 18bit
1 x System fan header
1 x CPU fan header
2 x SATA II 3Gb/s ports
2 x SATA power connectors
1 x Front panel header
1 x Back light control
1 x VGA header
1 x Keyboard + mouse header
1 x 4-pin 12V ATX power connector
1 x SMBus (co-lay with F_USB3)
5 x Serial (RI/5V/12V) headers
1 x Front audio header
1 x LVDS 18bit
1 x System fan header
1 x CPU fan header
2 x SATA II 3Gb/s ports
2 x SATA power connectors
1 x Front panel header
1 x Back light control
1 x VGA header
1 x Keyboard + mouse header
1 x 4-pin 12V ATX power connector
1 x SMBus (co-lay with F_USB3)
Rear I/O
4 x USB 2.0
1 x Serial (RS232/ RS422/ RS485)
1 x VGA
1 x PS/2
1 x RJ11 (for cash drawer)
1 x Line-Out
1 x LPT
2 x RJ45
1 x DC-In
1 x Serial (RS232/ RS422/ RS485)
1 x VGA
1 x PS/2
1 x RJ11 (for cash drawer)
1 x Line-Out
1 x LPT
2 x RJ45
1 x DC-In
TPM
-
OS Supported
Win XP
Win 7
Linux
POSReady 2009
POSReady 7
Win 7
Linux
POSReady 2009
POSReady 7
PSU Connectors
1 x 4-pin 12V ATX power connector
Power Supply
1 x DC-In 12V
Packaging Content
-
Ordering Information
9MNIC8CINS-CC
