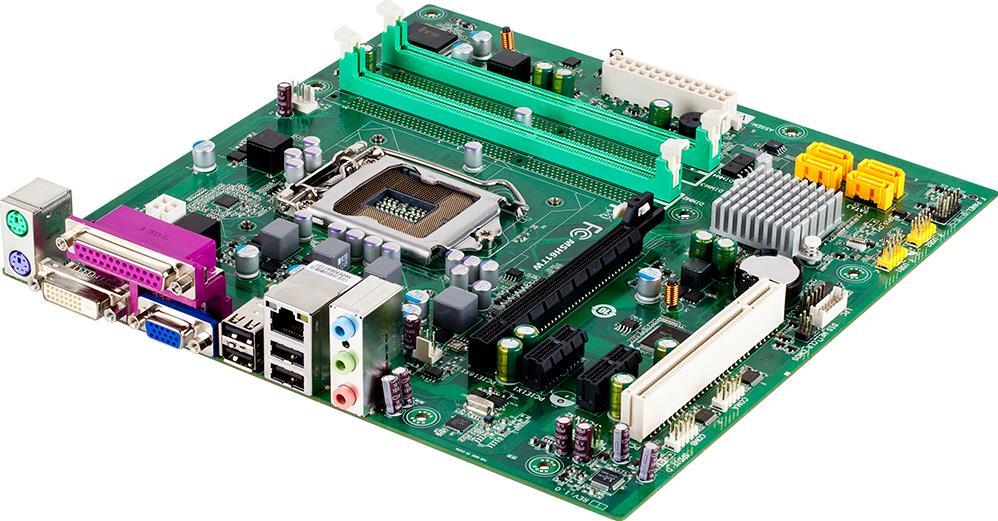

MSH61TWLegacy | Firmware updates supported
Intel® H61 chipset
- microATX form factor
- Intel® 3rd Gen. Core™ processors
- 2 x DIMM, up to 8GB 1600MHz
- 1 x GbE LAN port (Realtek® RTL8111E)
- 2 x COM ports (2 x internal)
- 4 x SATA II 3Gb/s ports
- Specifications
Specifications
Form Factor
microATX
244W x 244D (mm)
244W x 244D (mm)
Operating Properties
Operating temperature: -10°C to 60°C
Operating humidity: 0-85% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-85% (non-condensing)
CPU
Supports Intel® 2nd & 3rd Gen processors
Up to 77W TDP
Up to 77W TDP
Socket
1 x LGA 1155
Chipset
Intel® H61
Memory
2 x DIMM DDR3 slots
Dual channel memory architecture
Up to 8GB
1.5V modules: 1333/1600 MHz
Dual channel memory architecture
Up to 8GB
1.5V modules: 1333/1600 MHz
LAN
1 x GbE LAN port (Realtek® RTL8111E)
Video
Integrated graphics processor
Audio
Realtek® ALC662 controller
Supports 2/4/5.1 channel configurations
Supports 2/4/5.1 channel configurations
SATA
4 x SATA II 3Gb/s ports
RAID
-
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
2 x PCIe x1 (Gen2 x1 bus) slots
1 x PCI
2 x PCIe x1 (Gen2 x1 bus) slots
1 x PCI
Internal I/O
1 x 4-pin 12V ATX power connector
1 x 24-pin ATX main power connector
2 x Serial headers
1 x CPU fan header
1 x System fan header
1 x Front audio header
1 x LPC
2 x USB 2.0 headers
1 x 24-pin ATX main power connector
2 x Serial headers
1 x CPU fan header
1 x System fan header
1 x Front audio header
1 x LPC
2 x USB 2.0 headers
Rear I/O
4 x USB 2.0
1 x P/S2
1 x VGA
1 x DVI-I
1 x LPT
1 x Audio jack
1 x RJ45
1 x P/S2
1 x VGA
1 x DVI-I
1 x LPT
1 x Audio jack
1 x RJ45
TPM
-
OS Supported
Windows 7 32/64bit
Windows 8.1 32/64bit
Windows 8.1 32/64bit
PSU Connectors
1 x 4-pin 12V ATX power connector
1 x 24-pin ATX main power connector
1 x 24-pin ATX main power connector
Power Supply
-
Packaging Content
-
Ordering Information
9MSH61TWNR-SI
