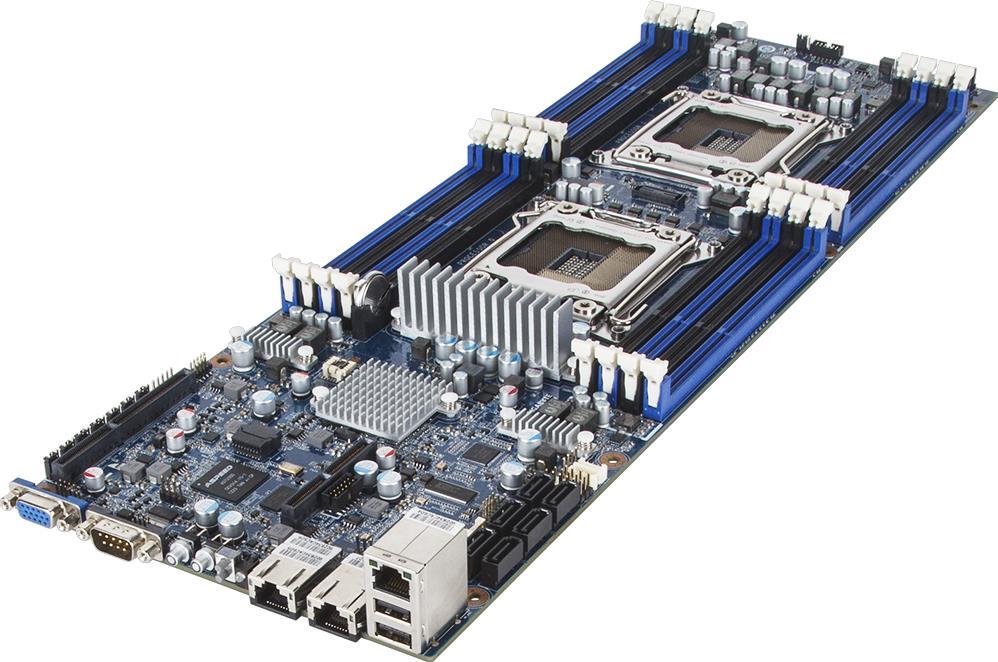

GA-7PTSHLegacy | Firmware updates supported

Rev. 1.0

Intel® C602 chipset

Intel^® Xeon^® processor E5-2600 & E5-2600 V2 product families
16 x RDIMM/UDIMM ECC DIMM slots
2 x GbE LAN ports (Intel^® I350-AM2)
2 x SATA III 6Gb/s + 4 x SATA II 3Gb/s
Aspeed^® AST2300 remote management controller

Save

Overview
Specifications
Support
Related Resources

Specifications

Form Factor

Proprietary half-width form factor
165W x 490D (mm)

CPU

Supports:

Intel^® Xeon^® E5-2600 V2 processors
Intel^® Xeon^® E5-2600 processors

Socket

2 x LGA 2011
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard

Chipset

Intel^® C602

Memory

16 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz

*Supported by Intel^® Xeon^® E5-2600 V2 processors only

Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors

LAN

2 x GbE LAN ports (Intel^® I350-AM2)
1 x 10/100 management LAN

Video

Integrated in Aspeed^® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Audio

SAS

SAS ports available via upgrade ROM

SATA

2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports

RAID

Intel^® SATA RAID 0/1/10/5

Expansion Slots

1 x Mezzanine I/F PCIe x8 (Gen3 x8 bus) slot
1 x Low profile PCIe x16 (Gen3 x16 bus) slot

Internal I/O

2 x 18-pin power connectors
1 x Front panel header
1 x Battery socket
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x SATA SGPIO header
1 x Front USB 2.0 header
1 x LPC header

Rear I/O

2 x USB 2.0
1 x Serial
1 x VGA
3 x RJ45
1 x Power button
1 x ID switch button with LED
1 x NMI button
1 x BMC reset button
1 x Power status LED

TPM

OS Compatibility

Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 SP1 (x64)

Red Hat Enterprise Linux 6.2 (x86/x64)

SUSE Linux Enterprise Server 11.2 (x86/x64)

VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2

Board Management

Aspeed^® AST2300 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)

PSU Connectors

2 x 18-pin power connectors

Retail Packaging Content

Reference Numbers

9M7PTSHNR-00

[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#3] All trademarks and logos are the property of their respective owners.
