R272-Z32

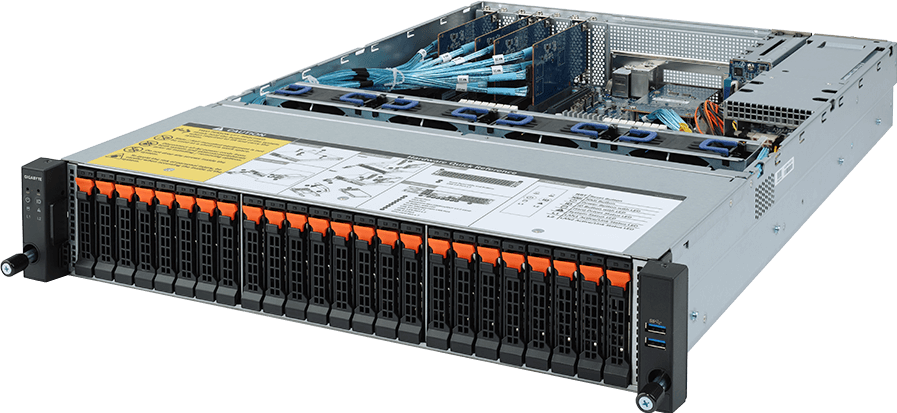

Rack Server - AMD EPYC™ 7003/7002 - 2U UP 24+2-Bay Gen3 NVMe/SATA/SAS
- Supports GRAID SupremeRAID NVMe/NVMe-oF RAID Card
- Single AMD EPYC™ 7003/7002 Series Processors (with AMD 3D V-Cache™ Technology)
- 8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 24 x 2.5" Gen3 NVMe hot-swappable bays
- 2 x 2.5" SATA/SAS hot-swappable bays on the rear side
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 1 x LP PCIe Gen4 x8 slot
- 1+1 1200W 80 PLUS Platinum redundant power supplies
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 660
438 x 87.5 x 660
Motherboard
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7003 Series Processors with AMD 3D V-Cache™ Technology
AMD EPYC™ 7002 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
cTDP up to 280W
AMD EPYC™ 7003 Series Processors with AMD 3D V-Cache™ Technology
AMD EPYC™ 7002 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
cTDP up to 280W
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front side:
24 x 2.5" Gen3 NVMe hot-swappable bays
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
24 x 2.5" Gen3 NVMe hot-swappable bays
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
RAID
N/A
Expansion Slots
Total 1 x PCIe Gen4 low-profile slot
Slot_6: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3024, 4 x NVMe HBA
Slot_5: 1 x PCIe x16 (Gen4 x8) slot
Slot_4: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3024, 4 x NVMe HBA
Slot_3: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3024, 4 x NVMe HBA
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8) slot, disabled
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8) slot, occupied by CNV3024, 4 x NVMe HBA
Note: Slot_7 is not available for this system model.
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16, occupied by CNVO124, 4 x NVMe HBA
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280 cards
Slot_6: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3024, 4 x NVMe HBA
Slot_5: 1 x PCIe x16 (Gen4 x8) slot
Slot_4: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3024, 4 x NVMe HBA
Slot_3: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3024, 4 x NVMe HBA
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8) slot, disabled
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8) slot, occupied by CNV3024, 4 x NVMe HBA
Note: Slot_7 is not available for this system model.
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16, occupied by CNVO124, 4 x NVMe HBA
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280 cards
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
3 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
Front side - CBP20O5: PCIe Gen3 x4
Rear side - CBP2021: SATA 6Gb/s or SAS 12Gb/s
Front side - CBP20O5: PCIe Gen3 x4
Rear side - CBP2021: SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
1+1 1200W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
System Management
Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 17.78 kg
Gross Weight: 24.76 kg
Gross Weight: 24.76 kg
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R272-Z32
1 x CPU heatsink
1 x 2-Section Rail kit
1 x CPU heatsink
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR272Z32MR-00-A*
- Barebone with 1300W Platinum PSU: 6NR272Z32MR-00-B*
- Barebone with 1300W Titanium PSU: 6NR272Z32MR-00-AT0
- Motherboard: 9MZ32AR0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O5: 9CBP20O5NR-00
- Backplane board - CBP2021: 9CBP2021NR-00
- PCIe pass through board: 9CEPM080NR-00
- PCIe NVMe Card: 9CNV3024NR-00
- OCP NVMe Card: 9CNVO124NR-00
- Fan module: 25ST2-883829-D0R
- Fan duct for 280W CPU: 25HA8-R27231-S5R
- Power supply 1200W Platinum: 25EP0-212008-D0S
- Power supply 1300W Platinum: 25EP0-213006-F3S
- Power supply 1300W Titanium: 25EP0-213005-G1S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- GRAID SupremeRAID Core Software Module License
a) SupremeRAID License: 25FC1-SRBUN3-AFS (12-native NVMe RAID)
b) SupremeRAID License: 25FC1-SRBUN0-AFS (32-native NVMe RAID)
- RMA packaging: 6NR272Z32SR-RMA-A100
- Barebone with 1300W Platinum PSU: 6NR272Z32MR-00-B*
- Barebone with 1300W Titanium PSU: 6NR272Z32MR-00-AT0
- Motherboard: 9MZ32AR0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O5: 9CBP20O5NR-00
- Backplane board - CBP2021: 9CBP2021NR-00
- PCIe pass through board: 9CEPM080NR-00
- PCIe NVMe Card: 9CNV3024NR-00
- OCP NVMe Card: 9CNVO124NR-00
- Fan module: 25ST2-883829-D0R
- Fan duct for 280W CPU: 25HA8-R27231-S5R
- Power supply 1200W Platinum: 25EP0-212008-D0S
- Power supply 1300W Platinum: 25EP0-213006-F3S
- Power supply 1300W Titanium: 25EP0-213005-G1S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- GRAID SupremeRAID Core Software Module License
a) SupremeRAID License: 25FC1-SRBUN3-AFS (12-native NVMe RAID)
b) SupremeRAID License: 25FC1-SRBUN0-AFS (32-native NVMe RAID)
- RMA packaging: 6NR272Z32SR-RMA-A100
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
QVL
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 64bit
- Linux
Chipset
LAN
RAID
RAID
Version
Size
Date
BIOS
Description
Version
Size
Date
1) Fixed PKfail Vulnerability.
2) Optimized BcpPro tool compatibility.
2) Optimized BcpPro tool compatibility.
Version : M22_R39
35.36 MB
Aug 26, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM CLI
Version : 2.1.77
147.89 MB
Sep 27, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
SupremeRAID SR-1000 Utility - RedHat/CentOS 8.3/8.4
Version : 1.0.6-126
9.67 MB
Nov 09, 2021
OS: Linux
SupremeRAID SR-1000 Utility - Ubuntu 20.04
Version : 1.0.6-126
16.25 MB
Nov 09, 2021
OS: Linux
SupremeRAID SR-1000 Utility - SLES15 SP2/SP3 & openSUSE Leap 15.2/15.3
Version : 1.0.6-126
13.44 MB
Nov 09, 2021
OS: Linux
Firmware
Description
Version
Size
Date
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
(AST2500 AMI)
Version : 12.61.21
105.38 MB
Apr 11, 2024
English
Manual
Description
Version
Size
Date
Description
Version
Size
Date
RESOURCES
Success Case
Articles
Solutions
Cloud
RAIDIX 5.X for GIGABYTE platforms
With GIGABYTE platforms, the RAIDIX team have come up with enterprise-scale software solutions that can make a huge difference for a business, both technological and financial. RAIDIX 5.X software enables all-flash and hybrid storage with a high-speed block (SAN) and file (NAS) access deployment.
Success Case | June 01, 2023
Using GIGABYTE, NIPA Cloud Soars Among CSP Giants in Thailand
NIPA Cloud is a leading public and private cloud service provider in Thailand. It has purchased multiple GIGABYTE R-Series Rack Servers to support the launch of its new service: NIPA Enterprise Public Cloud. Featuring powerful AMD EPYC™ processors and smart management functions, GIGABYTE servers boast the performance, availability, and power efficiency that can help NIPA Cloud go toe-to-toe with some of the world’s biggest CSPs, such as AWS, GCP, and Microsoft Azure.
Success Case | May 30, 2023
Spain’s IFISC Tackles COVID-19, Climate Change with GIGABYTE Servers
By using GIGABYTE, Spain’s Institute for Cross-Disciplinary Physics and Complex Systems is pitting the world’s foremost server solutions against some of the world’s most pressing issues, including the effects of climate change, pollution, and COVID-19. GIGABYTE servers are up to the diverse and daunting tasks, because they are designed for high performance computing, intensive numerical simulations, AI development, and big data management.
Success Case | May 25, 2023
GIGABYTE’s ARM Server Boosts Development of Smart Traffic Solution by 200%
A team of scientists at NTU has adopted GIGABYTE’s G242-P32 server and the Arm HPC Developer Kit to incubate a “high-precision traffic flow model”—a smart traffic solution that can be used to test autonomous vehicles and identify accident-prone road sections for immediate redress. The ARM-based solution gives the project a 200% boost in efficiency, thanks to the cloud-native processor architecture that “speaks” the same coding language as the roadside sensors, the high number of CPU cores that excel at parallel computing, the synergy with GPUs that enable heterogeneous computing, and the ISO certifications which make the resulting model easily deployable for automakers and government regulators alike.
Tech Guide | July 18, 2023
How to Pick a Cooling Solution for Your Servers? A Tech Guide by GIGABYTE
As CPUs and GPUs continue to advance, they consume more power and generate more heat. It is vital to keep temperature control in mind when purchasing servers. A good cooling solution keeps things running smoothly without hiking up the energy bill or requiring persistent maintenance. GIGABYTE Technology, an industry leader in high-performance servers, presents this Tech Guide to help you choose a suitable cooling solution. We analyze three popular options—air, liquid, immersion—and demonstrate what GIGABYTE can do for you.
Tech Guide | May 31, 2022
What is Private Cloud, and is it Right for You?
In the era of cloud computing, just about everyone has heard of the terms “private cloud” and “public cloud”. Chances are, you are using one or both of them in your everyday life—but how much do you really know about them? If you had the chance, could you build a private cloud for yourself or your organization? GIGABYTE Technology, an industry leader in server solutions used by global cloud service providers, is pleased to present our latest Tech Guide. We will examine the difference between private and public clouds, introduce the private cloud’s advantages and limitations, and then introduce GIGABYTE products that may help you build and operate a private cloud of your own.
Tech Guide | March 16, 2022
What is Big Data, and How Can You Benefit from It?
You may be familiar with the term, “big data”, but how firm is your grasp of the concept? Have you heard of the “5 V’s” of big data? Can you recite the “Three Fundamental Steps” of how to use big data? Most importantly, do you know how to reap the benefits through the use of the right tools? GIGABYTE Technology, an industry leader in high-performance server solutions, is pleased to present our latest Tech Guide. We will walk you through the basics of big data, explain why it boasts unlimited potential, and finally delve into the GIGABYTE products that will help you ride high on the most exciting wave to sweep over the IT sector.
Tech Guide | February 11, 2022
The Advantages of ARM: From Smartphones to Supercomputers and Beyond
Processors based on the ARM architecture, an alternative to the mainstream x86 architecture, is gradually making the leap from mobile devices to servers and data centers. In this Tech Guide, GIGABYTE Technology, an industry leader in high-performance server solutions, recounts how ARM was developed. We also explain the various benefits of ARM processors and recommend ARM servers for different sectors and applications.
Tech Guide | January 11, 2022
Cluster Computing: An Advanced Form of Distributed Computing
Cluster computing is a form of distributed computing that is similar to parallel or grid computing, but categorized in a class of its own because of its many advantages, such as high availability, load balancing, and HPC. GIGABYTE Technology, an industry leader in high-performance servers, presents this tech guide to help you learn about cluster computing. We also recommend GIGABYTE servers that can help you benefit from cluster computing.
Tech Guide | January 10, 2022
Setting the Record Straight: What is HPC? A Tech Guide by GIGABYTE
The term HPC, which stands for high performance computing, gets thrown around a lot nowadays, as server solutions become more and more ubiquitous. It is running the risk of becoming a catchall phrase: anything that is “HPC” must be the right choice for your computing needs. You may be wondering: what exactly are the benefits of HPC, and is HPC right for you? GIGABYTE Technology, an industry leader in high-performance servers, presents this tech guide to help you understand what HPC means on both a theoretical and a practical level. In doing so, we hope to help you evaluate if HPC is right for you, while demonstrating what GIGABYTE has to offer in the field of HPC.
Video
Video | July 28, 2021
Heroes Ascension
Over the past year or so, due to global warming and climate changes, all parts of the world have witnessed extreme weather events that are more severe than ...
Video | May 27, 2021
Ampere® Altra® Based Arm64 SolutionAll New High-Performance Server Platform
GIGABYTE #serversolutions #upgradeyourlife -- Where to buy https://www.gigabyte.com/Buy? Find us on social media ...
Video | March 25, 2021
What is it? Data Center in 60 Seconds
What is a data center? A data center is a facility that an organization uses for housing their IT equipment, including servers, storage, ...
Video | March 22, 2021
A Place for All Enterprise Things
Find Your Enterprise Solutions at https://bit.ly/2PfpQ6q This new enterprise homepage will provide easier access for IT professionals and businesses to find ...
News
News | May 30, 2022
GIGABYTE Joins ISC High Performance 2022 to Promote Emerging Enterprise Technologies, Including Accelerated Computing
News | January 05, 2022
GIGABYTE Creates INDUSTRY as an Enterprise Solution Technology Hub for CES
Latest Server Products and Innovations in One Place
Others
Back to R272-Z32
