SPECIFICATIONS

Dimensions (WxHxD, mm)
1U
430 x 43.5 x 625 mm
Motherboard
MT60-SC0
CPU
2 x Cavium® ThunderX™ ARM processors
64bit ARMv8 architecture
48 cores per processor, 2.0GHz
BGA 2601, 28nm technology
Chipset
-
Memory
16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
Up to total 512GB memory capacity
1866 MHz with 2DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
2133 MHz with 1DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
NOTE: Due to processor specification, at least 4 x DIMM modules must be installed for this model
LAN
3 x 40GbE QSFP+ LAN ports
4 x 10Gb/s SFP+ LAN ports
1 x 10/100/1000 management LAN port
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
Storage
10 x 2.5" hot-swappable HDD bays

- NOTE: GIGABYTE recommends that you follow the QVL when selecting hard drives, to avoid any system compatibility issues
SAS
-
RAID
Depends on OS RAID
Peripheral Drives
-
Expansion Slots
1 x Full-height half-length slot with PCIe x16 (Gen3 x8 bus) slot
Internal I/O
1 x 24-pin main power connector
2 x 8-pin power connectors
2 x CPU fan header
5 x System fan headers
1 x USB 3.0 header
1 x COM2 header
1 x SATA SGPIO header
1 x Front panel headers
1 x back plane board header
1 x PMBUS header
1 x BMC JTAG header
1 x JTAG PLD header
1 x BMC reset header
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x IPMB connector

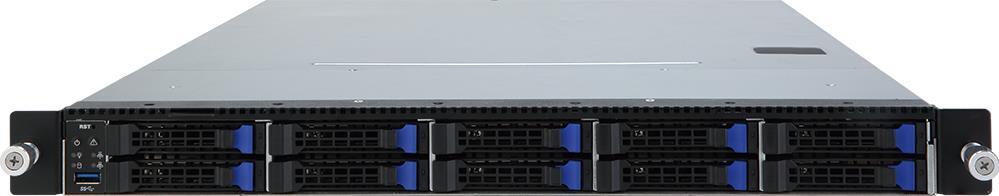

Front I/O
1 x USB 3.0
1 x Power button
1 x Power LED
1 x ID button
1 x Reset button
1 x HDD activity LED
2 x LAN activity LEDs(Dedicated for 10Gb/s SFP+ LAN ports)

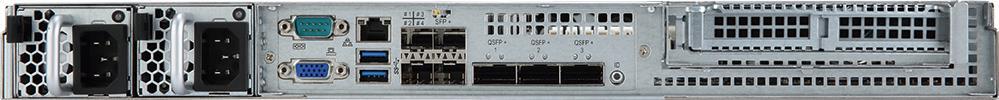

Rear I/O
1 x ID button with LED
2 x USB 3.0
1 x VGA
1 x COM1
3 x QSFP+
4 x SFP+
1 x RJ45
Backplane I/O
Speed and bandwidth:
SATA 6Gb/s
TPM
-
Power Supply
2 x 650W redundant PSUs
80 PLUS Platinum

AC input:
- 100-240V, 50-60Hz, 10/5A

DC output:
- 650W
System Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
OS Compatibility
Certified OS
Ubuntu 16.04.1 64bit
SLES12 SP2

Compatible OS
openSUSE Tumbleweed
openSUSE Leap 42.1+
RHEL 7.3 64bit
CentOS 7.3 64bit
Weight
13 kg (barebone)
System Fans
5 x 40x40x56mm (23000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
959 x 588 x 248 (mm)
Packaging Content
1 x R150-T60 system
1 x Quick Installation Guide
1 x Rail kit
Part Numbers
Rackmount: 6NR150T60MR-00
Motherboard: 9MT60SC0NR-00
Power supply: 25EP0-206504-F3S
Power Supply PDB: 25EP1-206500-F3S
Rail Kit: 25HB2-3A6804-I0R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SUPPORT

BIOS
Description
Version
Size
Date
**For Linux Kernel 4.4/4.5, e.g., Ubuntu 16.04, RedHat 7.3 (Beta OS validation), CentOS 7.3 (Beta OS validation)**
Update BDK ATF for CentOS 7.3-28 new Beta OS / CentOS 7.4 Beta / Redhat 7.4 Beta
Version : T45
7.74 MB
2017/06/27
**For Linux Kernel 4.4/4.5, e.g., Ubuntu 16.04, RedHat 7.3 (Beta OS validation), CentOS 7.3 (Beta OS validation)**
Update ACPI for CentOS 7.3-2 new Beta OS and update BDK ATF
Version : T41
7.79 MB
2017/05/17
**For Linux Kernel 4.4/4.5, e.g., Ubuntu 16.04, RedHat 7.3 (Beta OS validation), CentOS 7.3 (Beta OS validation)**
Update ACPI for CentOS 7.3-2 new Beta OS
Version : T35
7.51 MB
2017/05/16
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.

What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.

  • Choose your OS
  • Choose your OS
  • Windows Server 2016 64bit
  • Windows Server 2012 R2 64bit
  • Windows Server 2012 64bit
  • Windows Server 2008 R2 64bit
  • Ubuntu 14.04 LTS x64
Utility
Description
Version
Size
Date
GbtUtility command line utility
For Windows based clients
Version : 0.39
124.42 MB
2017/06/14
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit,Ubuntu 14.04 LTS x64,Windows Server 2016 64bit
