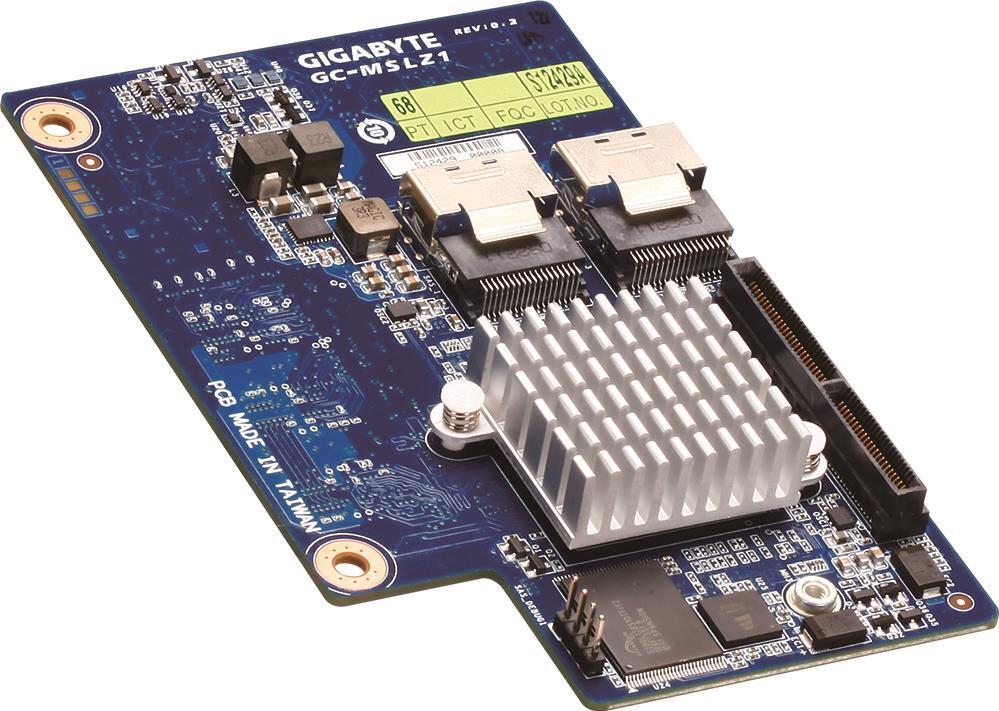

GC-MSLZ1
Discontinued
SAS 6Gb/s card
- 2 x Mini-SAS connectors for up to 8 x SAS 6Gb/s ports (internal)
- Supports SAS / Enterprise SATA hard drives
- LSI SAS2208
- 512MB cache memory
- Hardware RAID 0/1/5/6/10/50/60
- RAID 5/6 XOR engine (single pass)
- mezzanine card (2.0 x8 bus)
- 76.8 x 98 mm
SPECIFICATIONS
Ports
2 x Mini-SAS connectors for up to 8 x SAS 6Gb/s ports (internal)
Supports SAS / Enterprise SATA hard drives
Supports SAS / Enterprise SATA hard drives
Controller
LSI SAS2208
RAID
Hardware RAID
512MB cache memory
RAID 0/1/5/6/10/50/60
RAID 5/6 XOR engine (single pass)
512MB cache memory
RAID 0/1/5/6/10/50/60
RAID 5/6 XOR engine (single pass)
Interface
PCIe Gen2 x8 bus
Dimensions
76.8 x 98 mm
Format
Mezzanine H type card
Ordering Information
9CMSLZ1NR-00
Includes:
- 1 x riser card
- 2 x screws
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
QVL
- All
- All
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Windows Server 2008 R2
- Windows Server 2008 64bit
- Windows Server 2008 32bit
- Windows 8.1 64bit
- Windows 7 64bit
- Ubuntu 14.04 LTS x64
- SLES 12 x64
- SLES 11.4 x64
- RHEL 7.2 x64
- RHEL 6.7 x64
- FreeBSD
SAS
SAS
Version
Size
Date
LSI® SAS2208 Mega-RAID SAS Card Driver
Version : 6.701.04.00
242.81 MB
Dec 28, 2014
OS: Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows 8.1 64bit,Windows Server 2012 R2 64bit
LSI SAS3008/SAS2308/SAS2208 Utility
Version : 13.04.03.01
73.01 MB
Oct 23, 2017
OS: Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows 8.1 64bit,Windows Server 2012 R2 64bit
LSI® SAS2208 Mega-RAID SAS Card Driver
Version : 6.11-06.811.02.00-3
33.15 MB
Apr 28, 2016
OS: Ubuntu 14.04 LTS x64,RHEL 6.7 x64,RHEL 7.2 x64,SLES 11.4 x64,SLES 12 x64
LSI® SAS2208 Mega-RAID SAS Card Driver
Version : 6.11-06.711.00.00
0.9 MB
Apr 28, 2016
OS: FreeBSD
Description
Version
Size
Date
