EL-20-3710-32G
Discontinued

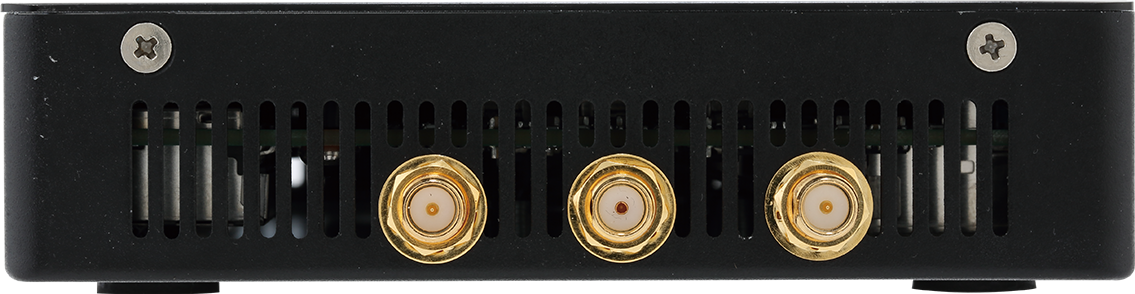

Intel® Bear Ridge IoT Gateway Solution
- Intel® Pentium® processor N3710
- 2 x SO-DIMM DDR3L slots
- 2 x GbE LAN ports (Realtek RTL8111HS)
- 32GB onboard eMMC memory
- 1 x Full-size Mini-PCIe slot for 3G module or mSATA storage
- 1 x SDXC card slot
- Supports Windows 7/ 8.1/ 10 and Android 5.1
-
Built-in 32GB Embedded Memory
![]()
The most widely available standard non-volatile memory devices to further aid the test and remote update process for customers. -
Dual Gigabit LAN
![]()
Experience the flexibility and convenience of the integrated Dual Lan function. -
SuperSpeed USB 3.0
![]()
With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. -
High-Definition Everywhere
![]()
HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content. -
Wide Range Voltage Input
![]()
Offering additional flexibility for system DC voltage input, GIGABYTE embedded products offer a broad voltage range of 12V to 19V, eliminating compatibility issues with many traditional IPC designs. -
Kensington Lock Slot
![]()
GIGABYTE embedded systems come with a Kensington lock slot for additional asset management and security. Keeping your hardware and confidential data inside well protected.
[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
SPECIFICATIONS
Operating Properties
Operating temperature: 0°C to 40°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -20°C to 60°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -20°C to 60°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Intel® Pentium® processor N3710
4 cores, 4 threads
1.6 - 2.56 GHz
2MB L2 cache
6W max. TDP
4 cores, 4 threads
1.6 - 2.56 GHz
2MB L2 cache
6W max. TDP
Socket
1 x BGA 1170
Memory
2 x SO-DIMM slots
1.35V DDR3L memory
Up to 8GB
1333/1600MHz
Pre-installed 2 x 2GB DDR3L memory module
1.35V DDR3L memory
Up to 8GB
1333/1600MHz
Pre-installed 2 x 2GB DDR3L memory module
Flash Memory
32GB eMMC
LAN
2 x GbE LAN ports (Realtek RTL8111HS)
Video
Intel HD Graphics supports dual display
Max. resolution via HDMI ports:
3840 x 2160 @ 30Hz or
2560 x 1600 @ 60Hz with 2 memory installed
Max. resolution via HDMI ports:
3840 x 2160 @ 30Hz or
2560 x 1600 @ 60Hz with 2 memory installed
Audio
Realtek ALC255 controller
Supports 2/4/5.1/7.1 channel configurations via HDMI
Supports 2/4/5.1/7.1 channel configurations via HDMI
Expansion Slots
1 x Full-size Mini-PCIe slot (for 3G module or mSATA storage)
1 x Half-size Mini-PCIe slot (for pre-installed WiFi+BT module)
1 x Half-size Mini-PCIe slot (for pre-installed WiFi+BT module)
Rear I/O
1 x DC-in
2 x HDMI v1.4b
2 x RJ45
2 x HDMI v1.4b
2 x RJ45
TPM
-
OS Compatibility
Windows 10 64bit
Windows 8.1 64bit
Windows 7 32bit / 64bit
Ubuntu 15.10
Ubuntu 16.04 LTS
Android 5.1
- Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
Windows 8.1 64bit
Windows 7 32bit / 64bit
Ubuntu 15.10
Ubuntu 16.04 LTS
Android 5.1
- Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
Power Supply
AC 100~240V
19V DC-in
65W/3.42A
19V DC-in
65W/3.42A
Packaging Content
1 x Quick start guide
1 x EL-20-3710-32G
1 x 19V AC/DC power adapter
1 x US type power cord
* Please contact region sales for antenna modules
1 x EL-20-3710-32G
1 x 19V AC/DC power adapter
1 x US type power cord
* Please contact region sales for antenna modules
Ordering Information
9BTCV5MR-SI
Storage
1 x SDXC card slot
Front I/O
4 x USB 3.0
1 x SDXC card slot
1 x Headphone-out / MIC-in
1 x Power button with LED
1 x HDD activity LED
3 x LEDs reserved for user configuration
1 x SDXC card slot
1 x Headphone-out / MIC-in
1 x Power button with LED
1 x HDD activity LED
3 x LEDs reserved for user configuration
System Fans
Fanless
Dimension
140.8 x 107.5 x 27 mm
Motherboard
Weight
560g
Side I/O
1 x Micro-B USB 2.0
1 x Micro-B 5-pin *RS232 full-duplex port ( TxD, RxD, CTS, RTS, GND) *[NOTE]: 1. Please check the pin definition and ensure the port is suitable for your peripherals. 2. The serial driver GIGABYTE provided for Windows 10 and 8 is a trial version, please contact your peripheral vendor to get the correct driver.
1 x Micro-B 5-pin *RS232 full-duplex port ( TxD, RxD, CTS, RTS, GND) *[NOTE]: 1. Please check the pin definition and ensure the port is suitable for your peripherals. 2. The serial driver GIGABYTE provided for Windows 10 and 8 is a trial version, please contact your peripheral vendor to get the correct driver.
[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
SUPPORT
Driver
BIOS
Utility
- All
- All
- Windows 8.1 64bit
- Windows 7 64bit
- Windows 7 32bit
- Windows 10 64bit
- Ubuntu
Audio
Card Reader
Chipset
LAN
LAN
Version
Size
Date
Realtek LAN Driver
Version : 7.92.115.2015
5.89 MB
Mar 29, 2016
OS: Windows 7 32bit,Windows 7 64bit
TPM
TPM
Version
Size
Date
TPM 2.0 Driver
SLB9665TT2.0 Infineon
SLB9665TT2.0 Infineon
Version : KB2920188
2.87 MB
Mar 29, 2016
OS: Windows 7 64bit
USB 3.0
Utility
Utility
Version
Size
Date
Intel ® Trusted Execution Engine Interface
Version : 2.0.0.2056
35.76 MB
Mar 22, 2016
OS: Windows 8.1 64bit
Intel ® Trusted Execution Engine Interface
Version : 2.0.29.0
37.52 MB
Mar 22, 2016
OS: Windows 10 64bit
Intel ® Trusted Execution Engine Interface
Version : 2.0.1.2084
37.52 MB
Mar 29, 2016
OS: Windows 7 32bit,Windows 7 64bit
Intel® Serial IO Driver
Version : 201603
18.18 MB
Mar 29, 2016
OS: Windows 7 32bit,Windows 7 64bit
VGA
VGA
Version
Size
Date
WLAN+BT
WLAN+BT
Version
Size
Date
Intel® Wireless LAN & Bluetooth Driver
Version : 18.20.0
45.47 MB
Mar 22, 2016
OS: Windows 8.1 64bit
Intel® Wireless LAN & Bluetooth Driver
Version : 17.1.1504.02G
447.04 MB
Mar 22, 2016
OS: Windows 10 64bit
Intel® Wireless LAN & Bluetooth Driver
Version : 18.20.0
94.08 MB
Mar 29, 2016
OS: Windows 7 32bit,Windows 7 64bit
BIOS
Description
Version
Size
Date
1.Update TXE to 2.0.4.3098
2. Patch some USB2.0 flash drive can't detect
3. Modify Total Memory Info
4. Modify item "Device Mode" to show only
5. Add EMMC info
6. Modify Token "DEFAULT_YEAR" to 2017
2. Patch some USB2.0 flash drive can't detect
3. Modify Total Memory Info
4. Modify item "Device Mode" to show only
5. Add EMMC info
6. Modify Token "DEFAULT_YEAR" to 2017
Version : F3
5.21 MB
Mar 03, 2017
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows 7 64bit
- Windows 7 32bit
- Default
Utility
Description
Version
Size
Date
Windows 7 USB Installation Tool & SOP
(Note) Support Intel 100 series & Braswell series motherboards.
(Note) Support Intel 100 series & Braswell series motherboards.
Version : B16.0120.1
21.59 MB
Jun 03, 2016
OS: Windows 7 32bit,Windows 7 64bit
Windows Embedded Standard 7 Install "on eMMC" Tool & SOP & eMMC driver
Version : B16.0120.1
25.76 MB
Jun 03, 2016
OS: Default
Windows 7 Install "on eMMC" Tool & SOP & eMMC driver
Version : B16.0120.1
24.79 MB
Mar 31, 2016
OS: Windows 7 32bit,Windows 7 64bit
Manual
Description
Version
Size
Date
Back to EL-20-3710-32G
