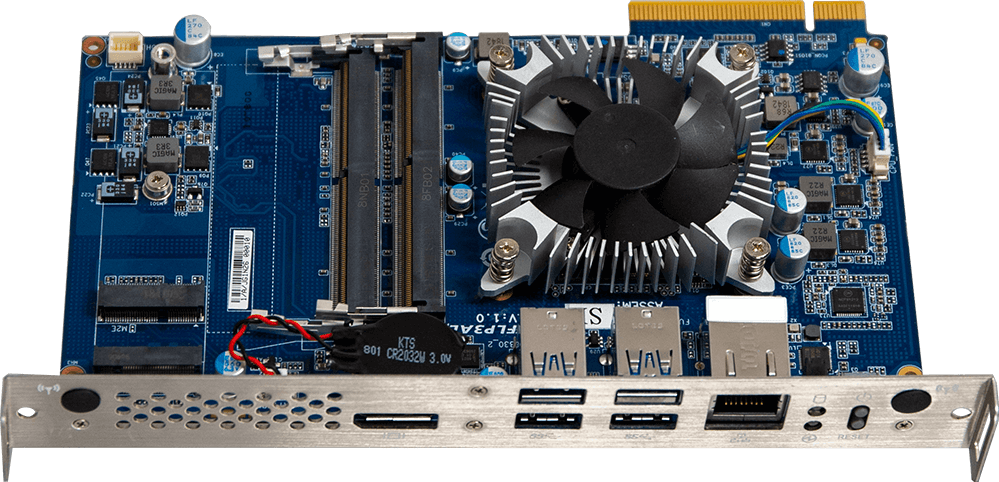

SDM-7100L
Intel® Smart Display Module with Intel® i3-7100U Processor
- SDM-L, 175W x 100D (mm)
- Intel® Core™ i3-7100U Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- HDMI and DP for dual display outputs
- 1 x GbE LAN Port
- Ultra-Fast M.2 with PCIe Gen3 x4 interface
- 4 x USB 3.2 Gen 1
-
(For more product information, please contact us at sales@gigaipc.com)
Specifications
Form Factor
SDM-Large
175W x 100D (mm)
175W x 100D (mm)
Operating Properties
Operating temperature: 0°C to +55°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Intel® Core™ i3-7100U Processor
14nm, 2 cores, 4 threads, 2.4 GHz
TDP 15W
14nm, 2 cores, 4 threads, 2.4 GHz
TDP 15W
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 2133 MHz memory modules
Support Dual Channel DDR4 2133 MHz memory modules
LAN
1 x GbE LAN Port (Intel® I219V)
Video
Integrated Graphics Processor - Intel® HD Graphics 620 support:
1 x HDMI 2.0 port (SDM), supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port (Rear/SDM side), supporting a maximum resolution of 4096x2160 @60Hz
1 x HDMI 2.0 port (SDM), supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port (Rear/SDM side), supporting a maximum resolution of 4096x2160 @60Hz
Audio
Intel® Integrated Audio
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-key (WiFi/BT)
1 x 2230 M.2 E-key (WiFi/BT)
Rear I/O
1 x Display Port
1 x RJ45 LAN Port
4 x USB 3.2 Gen 1
1 x PWR LED
1 x HDD LED
2 x External Antenna Holes (Optional)
1 x Reset button
1 x Power button
1 x RJ45 LAN Port
4 x USB 3.2 Gen 1
1 x PWR LED
1 x HDD LED
2 x External Antenna Holes (Optional)
1 x Reset button
1 x Power button
OS Compatibility
Windows 10 (x64)
Packaging Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Including:
Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R)
Packing Capacity: 10pcs
Including:
Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R)
Ordering Information
9MFLP3ALMR-SI (Box packing)
