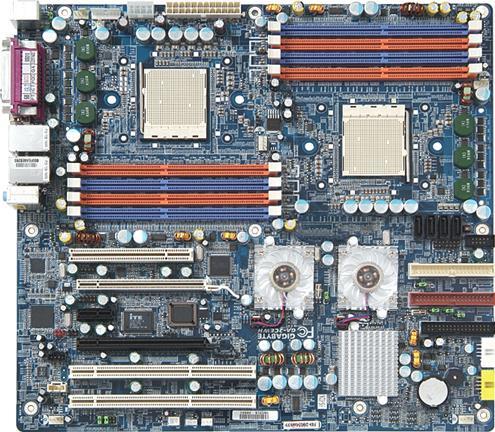

    GA-2CEWH

    Legacy | Software updates supported

    Rev. 1.0
    • Support dual AMD® Opteron™ 200 series processors
    • NVIDIA® nForce™ Professional 2200, 2050 and AMD® 8132 chipset
    • Dual PCI-E x16 graphic slots with SLI supported
    • Maximum 32GB Registered DDR333/400
    • Support four SATAII with RAID 0,1, 0+1 JBOD
    • One Broadcom® BCM5751 and one Broadcom® B5011U Gigabit LAN
    • EATX (12"D x 13"D)

    SPECIFICATIONS

    CPU
    • Supports Dual AMD® Opteron ™Processors
    • 800MHz Hyper Transport bus
    Chipset
    • NVIDIA® nForce™ Professional 2200
    • NVIDIA® nForce™ Professional 2050
    • AMD® 8132
    LAN
    • Broadcom®BCM5751T Gigabit LAN
    • Broadcom®BCM5011U phy
    • Wake On LAN (WOL)
    • Adapter Fault Tolerance (AFT)
    • Adaptive Load Balancing (ALB)
    Audio
    • ALC 850
    IDE / SCSI
    • 2 IDE controllers on the NVIDIA® nForce™ Professional 2200 controller hub
    RAID
    • Supports 4 SATAII with RAID 0,1, 0+1, JBOD
    Expansion Slots
    • 1 x PCI-E x1 slot
    • 2 x PCI-E x16 slot
    • 2 x PCI-X 64bit/133MHz Slots
    • 1 x PCI 32bit/33MHz slot
    Rear I/O
    • 2 x PS/2
    • 2 x USB 1.1
    • 2 x USB 2.0
    • 1 x COM
    • 1 x LPT
    • 2 x LAN RJ45
    • 1 x IEEE 1394
    • 1 x Audio
    • 1 x SPDIF
    [#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
    [#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
    [#3] All trademarks and logos are the property of their respective owners.

    SUPPORT

    • Downloads
      • Driver
      • BIOS
    • Manual
    • Support List
      • OS
      • QVL
    Online Support
    Driver
    BIOS
    OS
    QVL
    • All
    • All
    • Windows XP 64bit
    • Windows XP 32bit
    • Windows Server 2003 64bit
    • Windows Server 2003 32bit
    • Windows NT
    • Windows 2000
    • Solaris
    • Novell Netware
    • Default
    Audio
    Audio
    Version
    Size
    Date
    1. AC'97 Audio Driver
    2. For Windows 32 bit operating system
    Version : 3.70
    11.06 MB
    Nov 25, 2005
    Download
    OS: Windows 2000,Windows XP 32bit,Windows Server 2003 32bit
    1. AC'97 Audio Driver
    2. For Windows 64 bit operating system
    Version : 3.70
    11.13 MB
    Nov 25, 2005
    Download
    OS: Windows XP 64bit,Windows Server 2003 64bit
    1. AC'97 Audio Driver
    2. For Linux operating system
    Version : 1.0.4
    2.03 MB
    Nov 25, 2005
    Download
    CPU
    CPU
    Version
    Size
    Date
    1. AMD CPU Driver
    2. For Windows® XP 64 bit operating system
    Version : 1.2.2
    4.53 MB
    Feb 15, 2006
    Download
    OS: Windows XP 32bit,Windows XP 64bit,Windows Server 2003 32bit,Windows Server 2003 64bit
    Chipset Update Patch
    Chipset Update Patch
    Version
    Size
    Date
    1. Driver for AMD-813x chipset
    2. For Windows 2000 operating system
    Version : 1.8.1
    0.04 MB
    Nov 25, 2005
    Download
    OS: Windows 2000
    1. Driver for AMD-813x chipset
    2. For Windows Server 2003 32 bit operating system
    Version : 1.8.1
    0.04 MB
    Nov 25, 2005
    Download
    OS: Windows Server 2003 32bit
    1. Driver for AMD-813x chipset
    2. For Windows® XP 32 bit operating system
    Version : 1.8.1
    0.04 MB
    Nov 25, 2005
    Download
    OS: Default
    1. NVDIA Chipset Driver
    2. For Windows 2000/XP/Server 2003 32 bit operating system
    Version : 6.6.6
    35.58 MB
    Nov 25, 2005
    Download
    OS: Windows 2000,Windows XP 32bit
    1. NVDIA Chipset Driver
    2. For Windows® XP/Server 2003 64 bit operating system
    Version : 6.66
    33.54 MB
    Feb 15, 2006
    Download
    OS: Windows XP 32bit,Windows XP 64bit,Windows Server 2003 32bit,Windows Server 2003 64bit
    1. Driver for AMD-813x chipset
    2. For Windows® XP 64 bit operating system
    Version : 1.8.2
    0.13 MB
    Feb 15, 2006
    Download
    OS: Windows XP 64bit
    LAN
    LAN
    Version
    Size
    Date
    1. Broadcom BCM5751 LAN Driver
    Version : 7.7.4
    72.56 MB
    Nov 25, 2005
    Download
    OS: Windows NT,Windows 2000,Windows Server 2003 32bit,Novell Netware,Solaris
    BIOS
    Description
    Version
    Size
    Date
    Fix some CPU Power Now function
    Version : F14
    0.46 MB
    Oct 08, 2012
    Download
    1. P-State table for Opteron 256 (single core).
    2. Remove L2 cache information during POST
    3. Support DP boot. Now AMD recommend we need to block 100 series. Because 100 series is only for UP platform.
    4. Support Opteron 285
    Version : F13
    0.5 MB
    Aug 21, 2006
    Download
    1. Fix Serr/PERR function side effect. It will cause system reboot from updating F4 to F9
    Version : F10
    0.5 MB
    Nov 07, 2005
    Download
    Warning:
    Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.

    What is a BETA?
    BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
    Manual
    Description
    Version
    Size
    Date
    1. Technical updates
    Version : 1003
    0.86 MB
    Feb 27, 2007
    Download
    English
    Description
    Version
    Size
    Date
    OS Support List
    Version : 1.1
    0.02 MB
    Sep 26, 2005
    Download
    1. OS Compatibility for GA-2CEWH
    2. Updated version
    OS Support List
    Version : 1.0
    0.02 MB
    Sep 12, 2005
    Download
    1. OS Compatibility for GA-2CEWH
    Description
    Version
    Size
    Date
    QVL Support List
    Version : 1.0
    0.02 MB
    Sep 12, 2005
    Download
    1. QVL for GA-2CEWH
