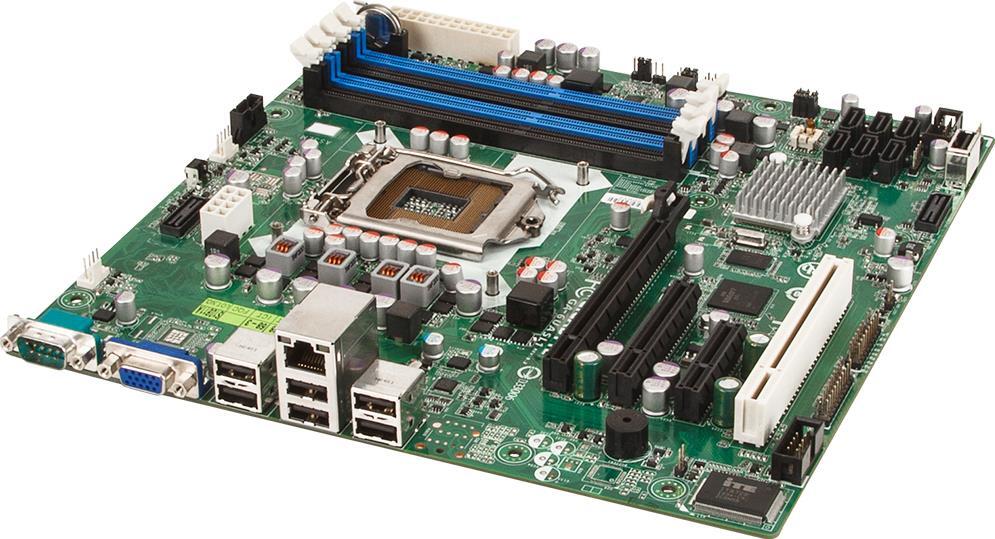

GA-6UASL1Legacy | Software updates supported
Intel® C202 chipset
- Intel® Xeon® processor E3-1200 & E3-1200 V2 product families
- 4 x UDIMM ECC DIMM slots
- 1 x GbE LAN port (Intel® 82579LM)
- 6 x SATA II 3Gb/s ports
- HW Monitor
- Overview
- Specifications
- Support
- Related Resources
Specifications
Form Factor
microATX
244W x 244D (mm)
244W x 244D (mm)
CPU
Supports Intel® Xeon® processor E3-1200 & E3-1200 V2 product families
Socket
1 x LGA 1155
Chipset
Intel® C202
Memory
4 x DIMM DDR3 slots
Dual channel memory architecture
Supports ECC UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1.5V modules: 1600/1333/1066 MHz
Dual channel memory architecture
Supports ECC UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1.5V modules: 1600/1333/1066 MHz
LAN
1 x GbE LAN port (Intel® 82579LM)
Video
XGI® Volari Z9s
Supports 64MB VRAM
Supports 64MB VRAM
Audio
-
SAS
-
SATA
6 x SATA II 3Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x8 (Gen2 x4 bus) slot
1 x PCIe x4 (Gen2 x2 bus) slot
1 x PCI slot
1 x PCIe x8 (Gen2 x4 bus) slot
1 x PCIe x4 (Gen2 x2 bus) slot
1 x PCI slot
Internal I/O
1 x USB 2.0 Type A connector
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA II 3Gb/s ports
1 x CPU fan header
4 x System fan headers
1 x NMI switch
1 x Front panel header
2 x USB 2.0 headers
1 x Serial header
1 x TPM header
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA II 3Gb/s ports
1 x CPU fan header
4 x System fan headers
1 x NMI switch
1 x Front panel header
2 x USB 2.0 headers
1 x Serial header
1 x TPM header
Rear I/O
6 x USB 2.0
1 x VGA
1 x Serial
1 x RJ45
1 x VGA
1 x Serial
1 x RJ45
TPM
1 x TPM header
OS Compatibility
Windows Server 2003 R2 + SP2 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)
Red Hat Enterprise Linux 6 (x86/x64)
SUSE Linux Enterprise Server 11.1 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)
Red Hat Enterprise Linux 6 (x86/x64)
SUSE Linux Enterprise Server 11.1 (x86/x64)
Board Management
HW Monitor
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Retail Packaging Content
1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
Reference Numbers
Bulk: 9M6UASL1NR-00
