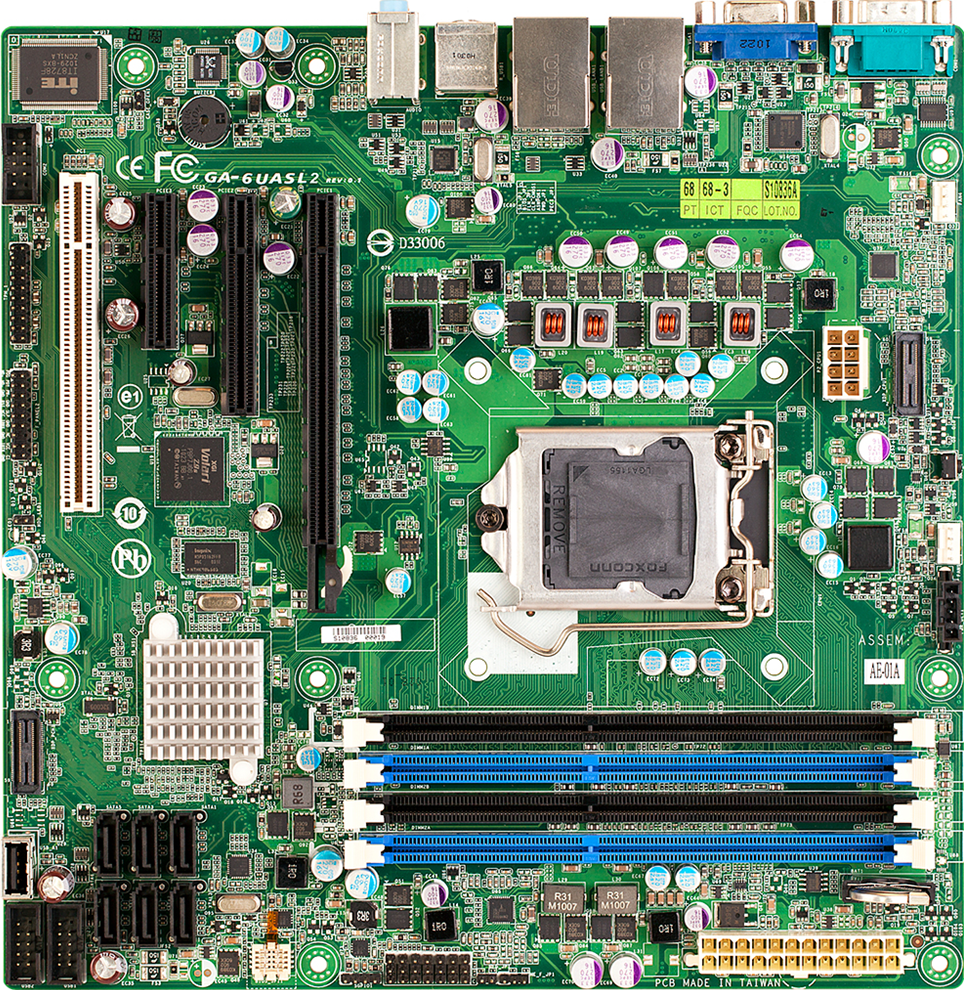

GA-6UASL2
Discontinued
Intel® C202 chipset
- Intel® Xeon® processor E3-1200 & E3-1200 V2 product families
- 4 x UDIMM ECC DIMM slots
- 2 x GbE LAN ports (Intel® 82574L & Intel® 82579LM)
- 6 x SATA II 3Gb/s ports
- HW Monitor
-
Intel Xeon InsideIntel Xeon Inside
-
PCIe Gen.3
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
microATX
244W x 244D (mm)
244W x 244D (mm)
CPU
Supports Intel® Xeon® processor E3-1200 & E3-1200 V2 product families
Socket
1 x LGA 1155
Chipset
Intel® C202
Memory
4 x DIMM DDR3 slots
Dual channel memory architecture
Supports ECC UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1.5V modules: 1600/1333/1066 MHz
Dual channel memory architecture
Supports ECC UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1.5V modules: 1600/1333/1066 MHz
LAN
2 x GbE LAN ports (Intel® 82574L & Intel® 82579LM)
Video
XGI® Volari Z9s
Supports 64MB VRAM
Supports 64MB VRAM
Audio
-
SAS
-
SATA
6 x SATA II 3Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x8 (Gen2 x4 bus) slot
1 x PCIe x4 (Gen2 x2 bus) slot
1 x PCI slot
1 x PCIe x8 (Gen2 x4 bus) slot
1 x PCIe x4 (Gen2 x2 bus) slot
1 x PCI slot
Internal I/O
1 x USB 2.0 Type A connector
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA II 3Gb/s ports
1 x CPU fan header
4 x System fan headers
1 x NMI switch
1 x Front panel header
2 x USB 2.0 headers
1 x Serial header
1 x TPM header
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA II 3Gb/s ports
1 x CPU fan header
4 x System fan headers
1 x NMI switch
1 x Front panel header
2 x USB 2.0 headers
1 x Serial header
1 x TPM header

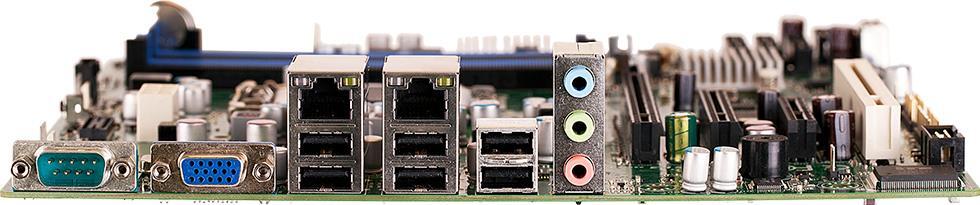

Rear I/O
6 x USB 2.0
1 x VGA
1 x Serial
2 x RJ45
1 x VGA
1 x Serial
2 x RJ45
TPM
1 x TPM header
OS Compatibility
Windows Server 2003 R2 + SP2 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)
Red Hat Enterprise Linux 6 (x86/x64)
SUSE Linux Enterprise Server 11.1 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)
Red Hat Enterprise Linux 6 (x86/x64)
SUSE Linux Enterprise Server 11.1 (x86/x64)
Board Management
HW Monitor
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Retail Packaging Content
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
2 x SATA II 3Gb/s cables (500mm)
Reference Numbers
Bulk: 9M6UASL2NR-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
QVL
- All
- All
- Windows Server 2008 R2
- Windows Server 2008 64bit
- Windows Server 2008 32bit
- Windows Server 2003 64bit
- Windows Server 2003 32bit
Audio
Audio
Version
Size
Date
Realtek audio driver
Version : 2.56
33.74 MB
Apr 25, 2013
OS: Windows Server 2003 32bit,Windows Server 2003 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2
Chipset
Chipset
Version
Size
Date
Intel Chipset Driver
Version : 9.2.0.1015
2.53 MB
Apr 25, 2013
OS: Windows Server 2003 32bit,Windows Server 2003 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit
LAN
LAN
Version
Size
Date
Intel Lan driver and utility
Version : 15.6
117.97 MB
Apr 25, 2013
OS: Windows Server 2003 32bit,Windows Server 2003 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2
RAID
RAID
Version
Size
Date
LSI IMSM Raid Driver and IMSM Utility
Version : 14.00.1111.2010
201.76 MB
Apr 25, 2013
OS: Windows Server 2003 32bit,Windows Server 2003 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
- Intel RAID driver
- Intel RAID utility for Windows x86/x64
Version : 10.1.0.1008
6.51 MB
Apr 25, 2013
OS: Windows Server 2003 32bit,Windows Server 2003 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2
BIOS
Description
Version
Size
Date
- Fix Onboard VGA disable fail issue.
- Fixed fan speed sometimes would appear "N/A" issue
- Change the memory info order in setup page
- Patch solution to exchange CPU & Patch memory disappearance issue
Version : F3
7.08 MB
Oct 05, 2011
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Description
Version
Size
Date
