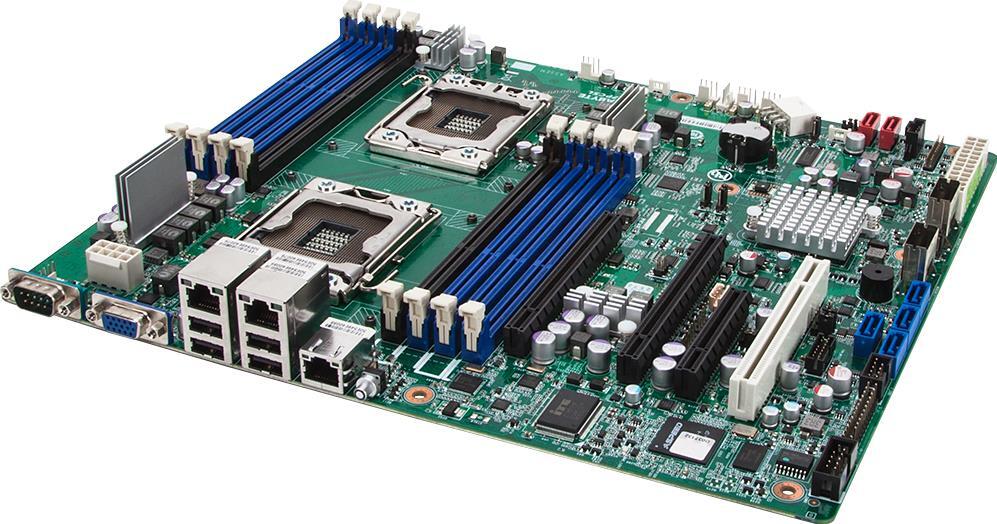

• Entry Level Dual Processor Server Board
    This model is dedicated to specific server applications that do not require particularly large memory and expansion platforms, although it keeps the best standards of today as well as GIGABYTE proven design.
  • Intel Xeon Inside
    Intel Xeon Inside
  • DDR3 1600
  • PCIe Gen.3
  • SATA3.0
  • Server Management
    The GA-6UASV4 is equipped with an ASPEED AST2150 board management controller (BMC), providing support for:
    • iKVM
    • Native PCIe
    • 2D Video Graphic Adapter with PCIe bus interface
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Form Factor
CEB
305W x 267D (mm)
CPU
Supports Intel® Xeon® processor E5-2400 & E5-2400 V2 product families
Socket
2 x LGA 1356
Chipset
Intel® C602
Memory
8 x DIMM slots
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz

*RDIMM only
LAN
2 x GbE LAN ports (Intel® 82574L)
1 x 10/100 management LAN
Video
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x120060Hz 32bpp
Audio
-
SAS
1 x Mini-SAS connector (for 4 x SATA 3Gb/s ports)
1 x Mini-SAS connector (disabled, can be enabled via Intel® upgrade key)
SATA
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x8 (Gen3 x4 bus) slot
1 x PCI slot
Internal I/O
1 x 24-pin main power connector
2 x 8 pin 12V power connectors
1 x CMOS battery socket
1 x Patsburg-A SKU select connector
2 x CPU fan headers
4 x System fan headers
2 x SATA III 6Gb/s ports
1 x PMBus connector
1 x HDD backplane connector
1 x Mini-SAS connector (SATA II 3Gb/s signal)
1 x Mini-SAS connector
2 x ME enable/disable jumpers
1 x USB 2.0 header
1 x Front panel header
1 x Serial header
1 x TPM header
1 x Chassis intrusion jumper
1 x SCU SGPIO connector
1 x IPMB connector
1 x BMC firmware readiness LED
1 x Clear password jumper
1 x BIOS recovery jumper
1 x Clear CMOS jumper
1 x BIOS write protect jumper
1 x SATA0/1 port DOM support jumper
Rear I/O
4 x USB 2.0
1 x VGA
1 x Serial
3 x RJ45
1 x ID button with LED
TPM
1 x TPM header
OS Compatibility
Windows Server 2003 R2 SP2 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)

Red Hat Enterprise Linux 6.2 (x86/x64)

SUSE Linux Enterprise Server 11.1 (x86/x64)

VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Board Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Retail Packaging Content
1 x Driver CD
1 x I/O shield
1 x User manual
2 x SATA II 3Gb/s cables (500mm)
Reference Numbers
Retail: 9M7PCSLMS-00
Bulk: 9M7PCSLNS-00
