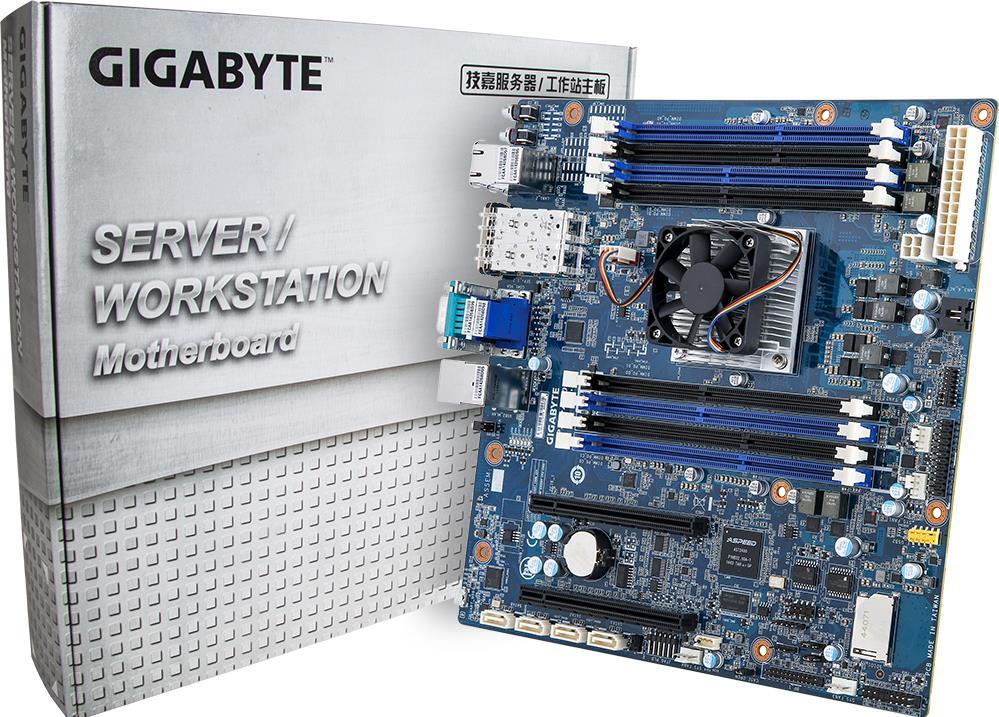

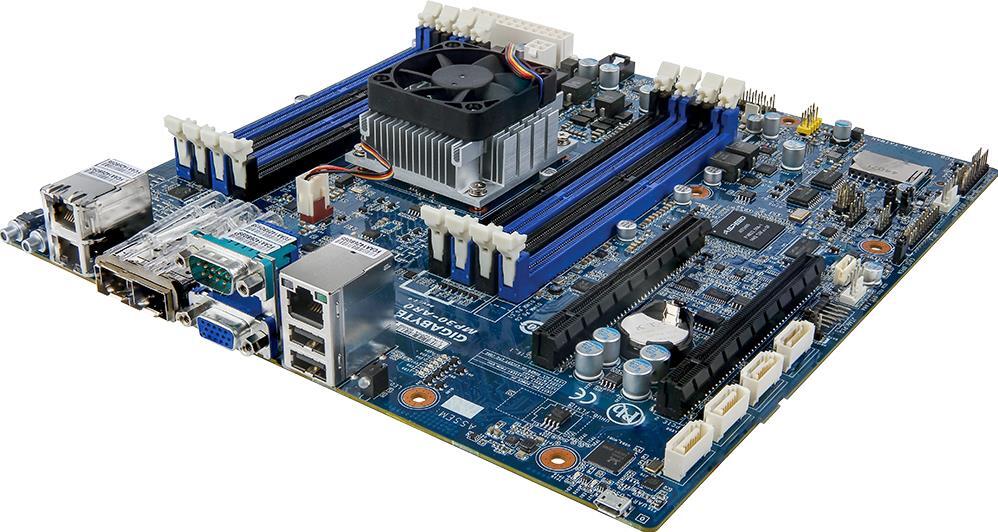

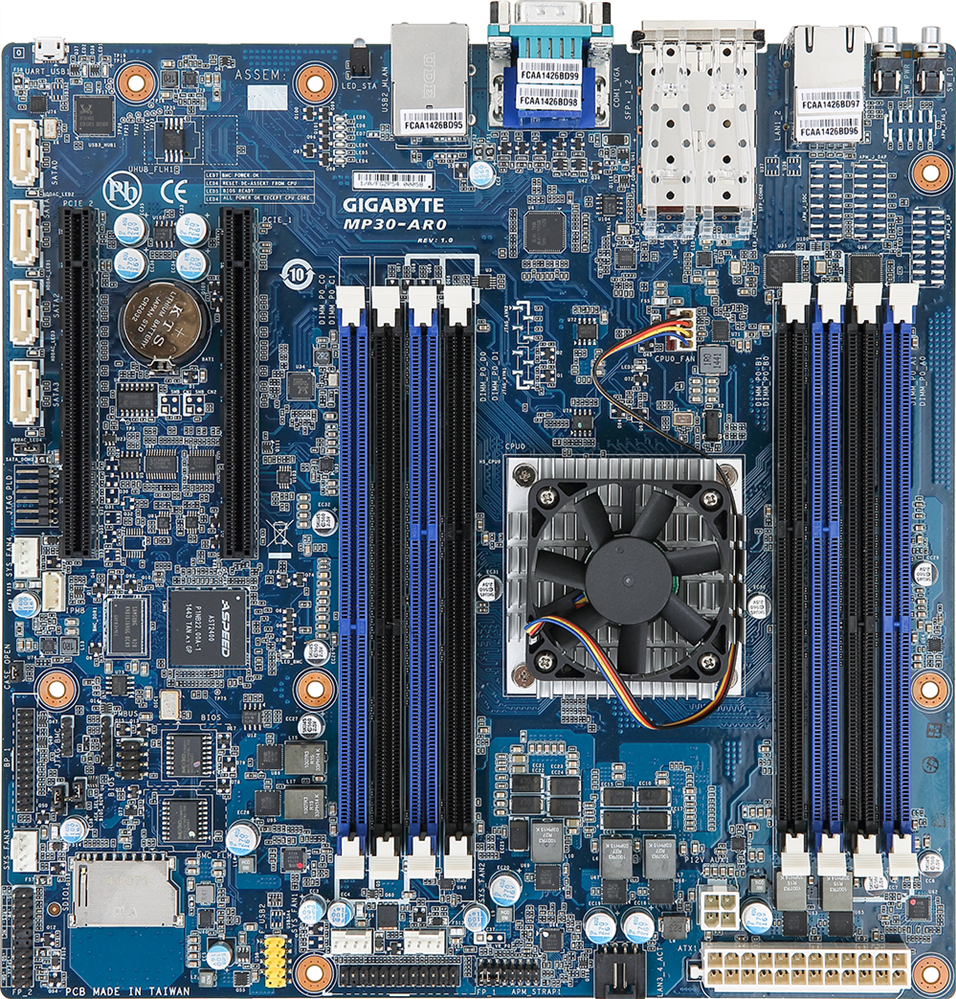

SPECIFICATIONS

Form Factor
microATX
244W x 244D (mm)
CPU
AppliedMicro® X-Gene 1 processor
ARMv8 architecture
8 cores
2.4 GHz
45W max. TDP
Socket
-
Chipset
-
Memory
8 x DIMM slots
Quad channel memory architecture
RDIMM/ECC UDIMM modules supported
Single, dual rank UDIMM modules up to 8GB supported
Supported speeds:
- 1 DIMM per channel: up to 1600 MHz
- 2 DIMM per channel: up to 1333 MHz
LAN
2 x 10GbE SFP+ LAN ports (integrated)
2 x GbE LAN ports (Marvell® 88E1512)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
SAS
-
SATA
4 x SATA III 6Gb/s ports
RAID
-
Expansion Slots
2 x PCIe x16 (Gen3 x8 bus) slots
Internal I/O
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA III 6Gb/s ports
1 x CPU fan header
4 x System fan headers
1 x SD card slot
1 x USB 2.0 header
2 x Front panel headers
1 x APM strap header
1 x HDD back plane board header
1 x PMBUS header
1 x BMC JTAG header
1 x JTAG PLD header
1 x BIOS_H header
1 x Chassis intrusion header
1 x SATA DOM jumper
1 x BIOS recovery jumper
1 x ACK selection jumper
1 x IPMB connector
Rear I/O
2 x USB 2.0
1 x VGA
1 x Serial
2 x SFP+
3 x RJ45
1 x ID button with LED
1 x Power button with LED
1 x Status LED
TPM
-
OS Compatibility
Open Linux (included)
Board Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
PSU Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
ŠNon-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MP30-AR0
1 x I/O shield
4 x SATA III 6Gb/s cables
Box dimensions: 321 x 308.5 x 78.5 mm
Bulk Packaging Content
10 x MP30-AR0
10 x I/O shields
Box dimensions : 600 x 386 x 368 mm
Reference Numbers
Retail: 9MP30AR0MR-00
Bulk: 9MP30AR0NR-00
