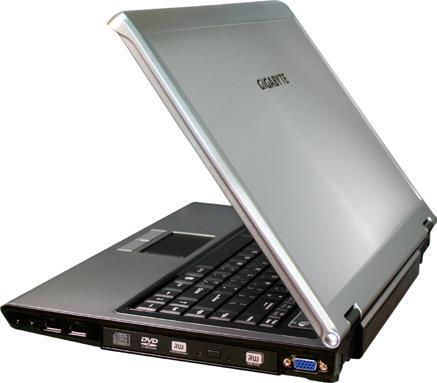

W552U

СпецификацииПоддержка

Спецификации

  • Операционная система
  • Genuine Windows® Vista Home Basic
    Genuine Windows® Vista Home Premium
    Genuine Windows® Vista Business
  • Процессор
  • Intel® Core™ 2 Duo Processor ( 65nm, FSB 667MHz, L2 cache 2MB or 4MB)
    Intel® Core™ Duo Processor (65nm, FSB 667MHz, L2 cache 2MB)
    Intel® Celeron M Processor (65nm, FSB 533MHz)
  • Видеоподсистема
  • Intel® Graphics Media Accelerator 950
  • Дисплей
  • 15.4”TFT-LCD WXGA, Glare Type,1280x800, 16.7M colors
  • Оперативная память
  • 2 DDR II 533/667 SO-DIMM (Max 2G)
    * For the compatible HDDs & RAMs by model, please refer "Notebook FAQ".
  • Чипсет
  • Intel® 945GM / ICH7-M
  • Дисковая подсистема
  • 9.5mm, 2.5" S-ATA HDD support with 40/60/80/120/160GB ( 5400rpm ) capacity
    Easily removable no more than two screws
  • Оптический накопитель
  • 12.7mm slim DVD- ROM Super Multi
  • Порт ввода/вывода
  • USB (V2.0, horizontal type) x 3(2 in Right side, 1 in Left side) ,RGB; VGA port x 1,
    15pins (Right side) ,S-Video out x 1 (Rear side),Microphone-in x 1(Right side) ,
    Headphone-out with S/PDIF jack x 1 (Right side) ,No FIR,DC-in jack (Rear side) ,
    RJ-11 jack x 1 for 56Kbps V.90/92 Modem (Rear side), RJ-45 jack x 1( Left side) ,
    Kensington lock x 1 (Rear side) ,ExpressCard/54 x 1 (Left side) ,
    PCMCIA Type II x 1 (Left side),3-in-1 Flash Card Reader(SD/MMC/MS) x 1 (front side),
    IEEE 1394 x1(4-pin) x 1 (left side),
    Two way communication switch (Left to on, Right to off),
    Internal microphone x 1 (in LCD module)
  • Аудиоподсистема
  • Realtek ALC883,HD Audio,Microphone-in and headphone-out,Internal Microphone,Two stereo speakers,Volume control: Hot-key control for XP
  • Средства коммуникации
  • LAN: PCI-E Ethernet 10/100/1000M Base T on board
    Wireless LAN: Intel® PRO/Wireless 3945ABG
  • Безопасность
  • HDD Password,Kensington lock
  • Габариты (ШxДxВ)
  • 362mm(W) x 265mm(D)x 31.7mm(H) in front side, 38.9mm in rear side
    Less than 2.73 kg with 15.4”WXGA & 6cell battery (TBD)
  • Операционная система
  • Genuine Windows® Vista Home Basic
    Genuine Windows® Vista Home Premium
    Genuine Windows® Vista Business
  • Процессор
  • Intel® Core™ 2 Duo Processor ( 65nm, FSB 667MHz, L2 cache 2MB or 4MB)
    Intel® Core™ Duo Processor (65nm, FSB 667MHz, L2 cache 2MB)
    Intel® Celeron M Processor (65nm, FSB 533MHz)
  • Видеоподсистема
  • Intel® Graphics Media Accelerator 950
  • Дисплей
  • 15.4”TFT-LCD WXGA, Glare Type,1280x800, 16.7M colors
  • Оперативная память
  • 2 DDR II 533/667 SO-DIMM (Max 2G)
    * For the compatible HDDs & RAMs by model, please refer "Notebook FAQ".
  • Чипсет
  • Intel® 945GM / ICH7-M
  • Дисковая подсистема
  • 9.5mm, 2.5" S-ATA HDD support with 40/60/80/120/160GB ( 5400rpm ) capacity
    Easily removable no more than two screws
  • Оптический накопитель
  • 12.7mm slim DVD- ROM Super Multi
  • Порт ввода/вывода
  • USB (V2.0, horizontal type) x 3(2 in Right side, 1 in Left side) ,RGB; VGA port x 1,
    15pins (Right side) ,S-Video out x 1 (Rear side),Microphone-in x 1(Right side) ,
    Headphone-out with S/PDIF jack x 1 (Right side) ,No FIR,DC-in jack (Rear side) ,
    RJ-11 jack x 1 for 56Kbps V.90/92 Modem (Rear side), RJ-45 jack x 1( Left side) ,
    Kensington lock x 1 (Rear side) ,ExpressCard/54 x 1 (Left side) ,
    PCMCIA Type II x 1 (Left side),3-in-1 Flash Card Reader(SD/MMC/MS) x 1 (front side),
    IEEE 1394 x1(4-pin) x 1 (left side),
    Two way communication switch (Left to on, Right to off),
    Internal microphone x 1 (in LCD module)
  • Аудиоподсистема
  • Realtek ALC883,HD Audio,Microphone-in and headphone-out,Internal Microphone,Two stereo speakers,Volume control: Hot-key control for XP
  • Средства коммуникации
  • LAN: PCI-E Ethernet 10/100/1000M Base T on board
    Wireless LAN: Intel® PRO/Wireless 3945ABG
  • Безопасность
  • HDD Password,Kensington lock
  • Габариты (ШxДxВ)
  • 362mm(W) x 265mm(D)x 31.7mm(H) in front side, 38.9mm in rear side
    Less than 2.73 kg with 15.4”WXGA & 6cell battery (TBD)

* Термины HDMI, HDMI High-Definition Multimedia Interface, фирменный стиль HDMI и логотип HDMI являются товарными знаками или зарегистрированными товарными знаками компании HDMI Licensing Administrator, Inc.
1 Upgrade timing may vary by device. Features and app availability may vary by region. Certain features require specific hardware (see aka.ms/windows11-spec).
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
