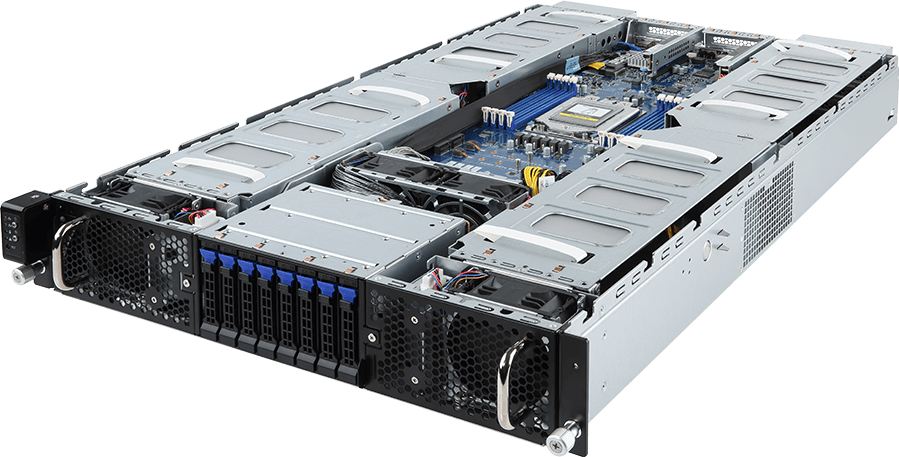

G291-Z20Legacy | Software updates supported

2U
448 x 87.5 x 800

MZ21-G20

AMD EPYC™ 7001 series processor family
Single processor, 14nm, Socket SP3
Up to 32-core, 64 threads
TDP up to 200W

Socket SP3

System on Chip

8 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: 2666/2400/2133 MHz

2 x SFP+ 10Gb/s LAN ports (Mellanox^® ConnectX-4 Lx)
1 x 10/100/1000 management LAN

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

8 x 2.5" hot-swappable HDD/SSD bays

SAS card is required for SAS devices support

Suggested 12Gb/s SAS cards:
CRA4448
CRA4548

Supported

Supported via add-on SAS Card

N/A

N/A

8 x PCIe x16 slots (Gen3 x16 bus) for GPUs
2 x PCIe x16 (Gen3 x16 bus) Half-length low-profile slots

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x2
- Supports NGFF-2242/2260/2280/22110 cards

- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
- For the latest GPU cards QVL, please contact your GIGABYTE representative

1 x TPM header
1 x Sli-SAS connectors
2 x M.2 slots
1 x Serial header
1 x Buzzer

1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button

2 x USB 3.0
1 x VGA
2 x SFP+
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED

8 x SAS/SATA ports
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
SAS card is required for SAS devices support

1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000

2 x 2200W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Input:
- 240Vdc/ 12.6A

DC Output:
- Max 1200W/ 100-127V~
+ 12.12V/ 95.6A
+ 12Vsb/ 3.5A
- Max 2200W/ 200-240V~
+ 12.12V/ 178.1A
+ 12Vsb/ 3.5A

NOTE: The system power supply requires C19 type power cord

Aspeed^® AST2500 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

• Network settings
• Network security settings
• Hardware information
• Users control
• Services settings
• IPMI settings
• Sessions control
• LDAP settings
• Power control
• Fan profiles
• Voltages, fans and temperatures monitoring
• System event log
• Events management (platform events, trap settings, email settings)
• Serial Over LAN
• vKVM & vMedia (HTML5)

Windows Server 2012 R2 with Update
Windows Server 2016

Red Hat Enterprise Linux 7.4 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 16.04 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later

8 x 80x80x38mm (16,300rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Net Weight: 29.5 kg
Gross Weight: 34.7 kg

1 x G291-Z20
1 x CPU heatsink
1 x Rail kit

- Barebone with rail kit: 6NG291Z20MR-00-1*
- Motherboard: 9MZ21G20NR-00-1*
- Tool-less rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-153104-A8R
- Fan module: 25ST2-883827-D0R
- Power supply: 25EP0-222001-D0S
* C19 type power cord 125V/15A (US): 25CP1-018000-Q0R (optional)
* C19 type power cord 250V/16A (EU): 25CP3-01830H-Q0R (optional)
* C19 type power cord 250V/15A (US): 25CP1-018300-Q0R (optional)
- 2 x Internal SSD kit: 6NG291281SR-00 (optional)
