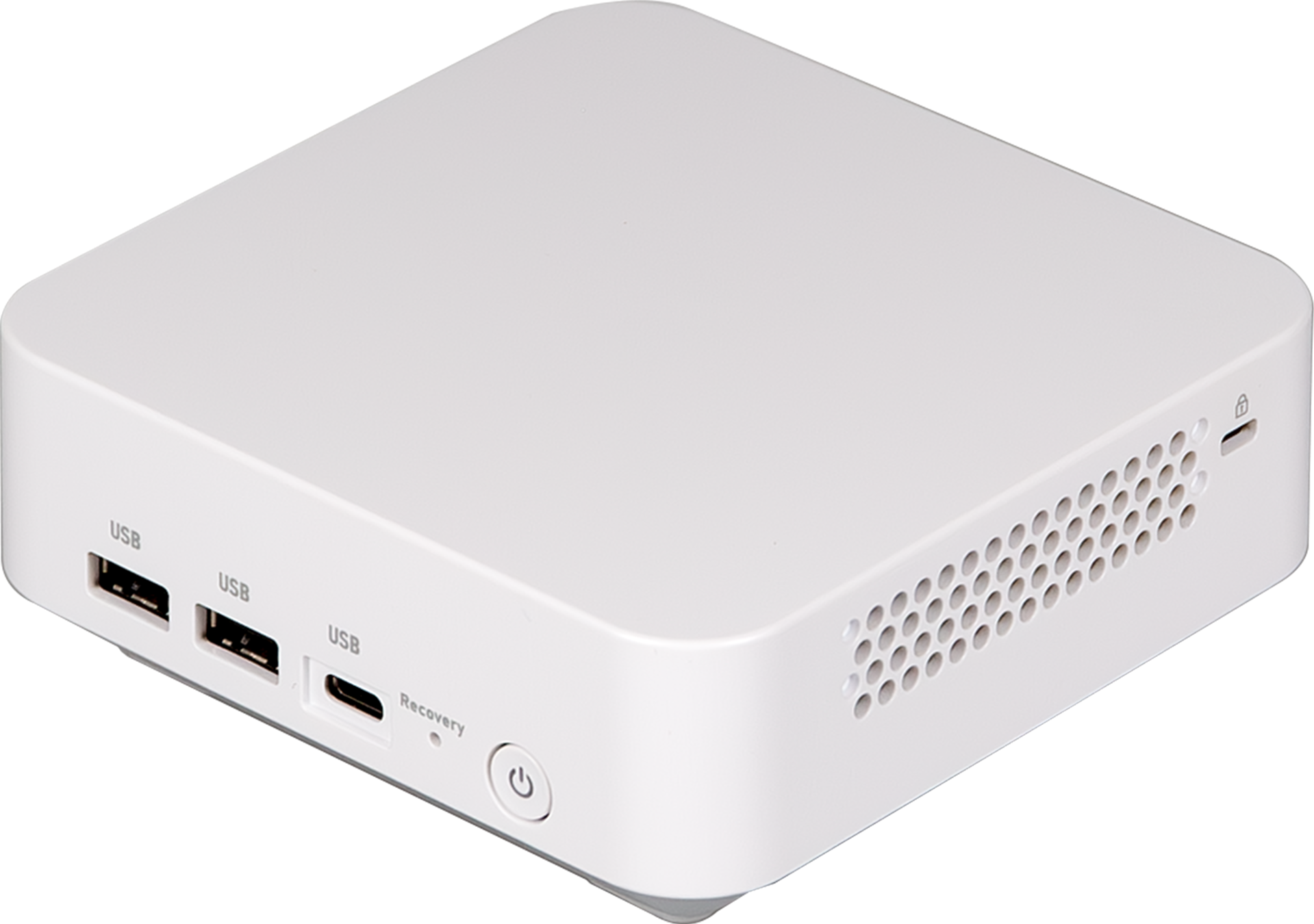

QN-ORNX16
AI system with NVIDIA® Jetson Orin™ NX, up to 100 TOPS, 16GB 128-bit LPDDR5 DRAM
System Size : 124W x 127.6D x 47.7H (mm)
NVIDIA® Jetson Orin™ NX, up to 100 TOPS
16GB 128-bit LPDDR5 DRAM
AI of Medical Application
VESA Mount 75/100 support
(For more product information, please contact us at sales@gigaipc.com)
(For more product information, please contact us at sales@gigaipc.com)
產品規格
Processor Supported
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3
2MB L2 + 4MB L3
Memory Type
16GB 128-bit LPDDR5 DRAM (Module)
Integrated Network
1 x GbE LAN Port
Expansion Slot
1 x 2280 M.2 M-Key (PCIe Gen4x4, Support HDMI Capture card)(M2M1)
1 x 2230 M.2 E-Key
1 x 2230 M.2 E-Key
Rear I/O Connectors
1 x Scrw type DC Jack
1 x RJ45 LAN Port
1 x HDMI
2 x USB 3.2 Gen2x2
2 x External Antenna Holes (Optional)
1 x RJ45 LAN Port
1 x HDMI
2 x USB 3.2 Gen2x2
2 x External Antenna Holes (Optional)
Storage
1 x 2280 M.2 SSD (PCIe Gen3x2)(M2M2)
Front I/O
1 x USB 3.2 Gen 1 Type C, 5V/1A (not support USB to NVME dock)
2 x USB 2.0
1 x Power button with LED
1 x Recovery button
2 x USB 2.0
1 x Power button with LED
1 x Recovery button
Power Adapter
+19VDC
GPU
NVIDIA Ampere architecture GPU with 1024 NVIDIA CUDA® cores and 32 Tensor cores
Dimension
124W x 127.6D x 47.7H (mm)
AI Accelerator
NVIDIA® Jetson Orin™ NX
Jetson Orin NX 16GB
Jetson Orin NX 16GB
AI Performance
Up to 100 TOPs
Display output
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
Video input
1 x HDMI input (Optional)
1 x VGA input (Optional)
1 x VGA input (Optional)
