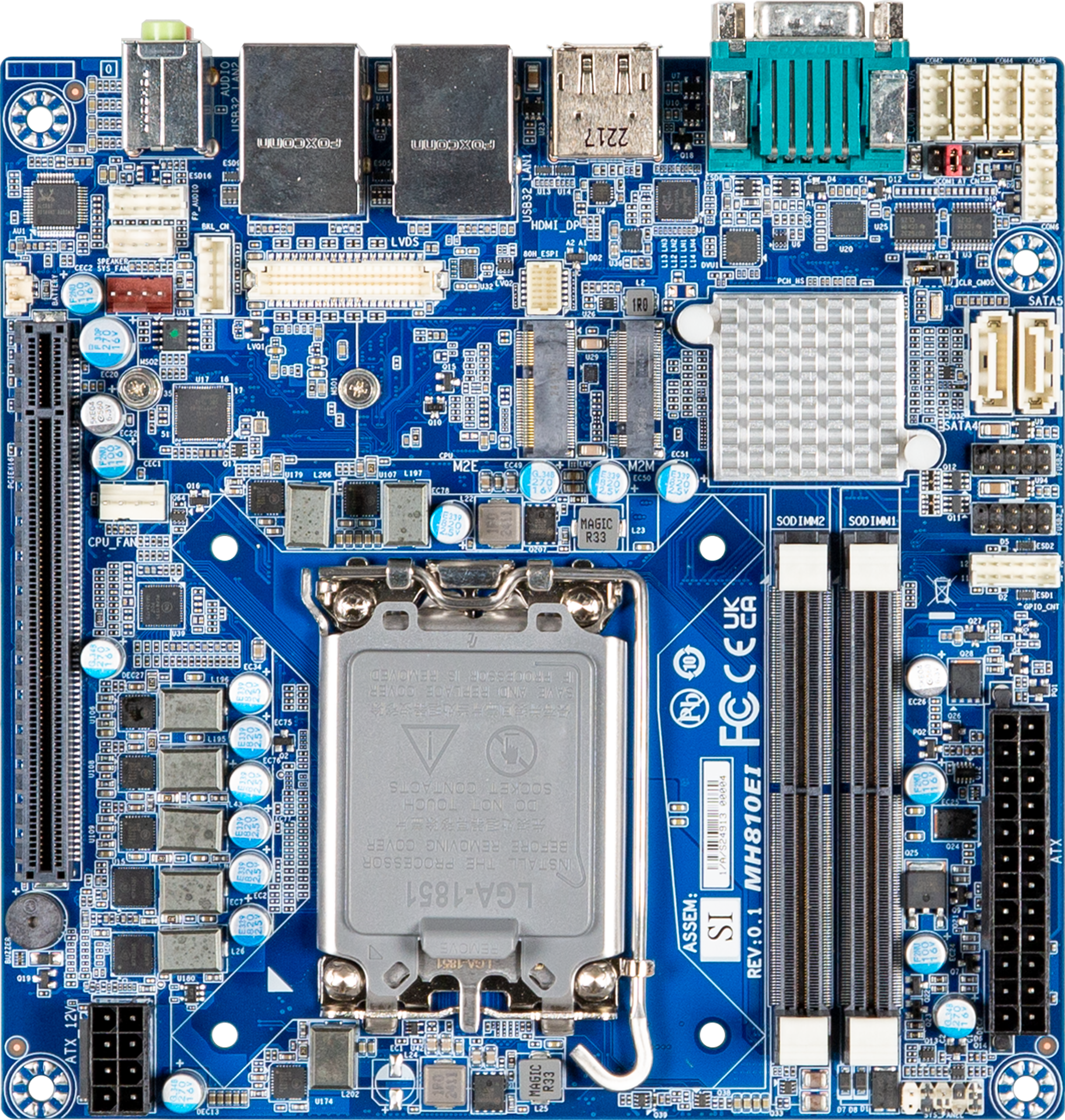

mITX-H810E即將推出

Mini-ITX
170W x 170D (mm)

Support for 15th Generation
Intel® Core™ Ultra Desktop processors in the LGA1851 package
TDP under 65W/35W

1 x LGA 1851

Intel® H810 Chipset

2 x DDR5 DIMM sockets, Max. Capacity 96 GB
Support Dual channel DDR5 5600 MHz memory modules

1 x 2.5GbE LAN Port (Intel I226V)
1 x GbE LAN Port (Intel 219V)

Integrated Graphics Processor – Depends on CPU:
1 x HDMI 2.1, 1 x DisplayPort 2.1, 1 x VGA, 1 x LVDS

(3 independent display outputs)

Realtek® ALC897

1 x PCIe x16 (Gen4x16)
1 x 2280 M.2 M-Key (PCIe Gen4 + SATA)
1 x 2230 M.2 E-Key (PCIe x1, USB2.0)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x Speaker out header
4 x USB 2.0 headers
1 x COM header (RS-232/422/485)
4 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBus header
1 x Backlight Control header
1 x Clear CMOS jumper
1 x Buzzer
1 x AT/ATX mode select jumper

2 x Audio Jacks (Line out, Mic IN)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x HDMI
1 x DisplayPort
1 x VGA
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2

Onboard TPM 2.0 security chip Infineon SLB9670VQ2.0

2 x SATA 6Gb/s Ports
