G190-G30Legacy | Software updates supported

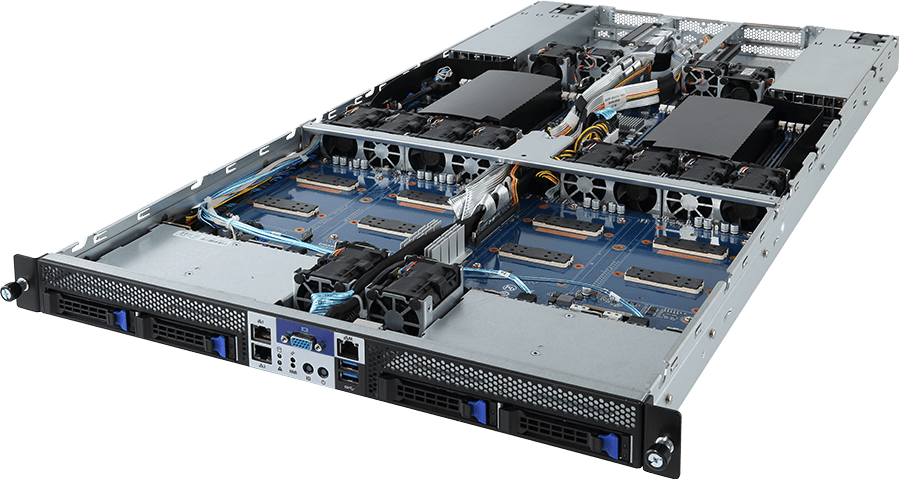

HPC Server - 1U 4 x SXM2 GPU Server
- Up to 4 x NVIDIA Tesla® V100 SXM2 modules
- Up to 300GB/s GPU interconnection by NVIDIA® NVLINK™ technology
- Intel® Xeon® processor E5-2600 v4 / v3 product families
- 16 x RDIMM/LRDIMM ECC DDR4 DIMM slots
- 2 x GbE LAN ports (Intel® I350-AM2)
- 4 x 2.5" SATAIII hot-swappable HDD/SSD bays
- 2 x PCIe Gen3 expansion slots
- 80 PLUS Titanium 2000W redundant PSU
Specifications
Dimensions (WxHxD, mm)
1U
440 x 43.5 x 900 mm
Motherboard
MG30-NV0
CPU
Intel® Xeon® E5-2600 v4 processors supported
Intel® Xeon® E5-2600 v3 processors supported
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Mounting pitch: square ILM (80x80mm)
Chipset
Intel® C612
Memory
16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 2133/2400 MHz
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 2133/2400 MHz
LAN
2 x GbE LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
Storage
4 x 2.5" hot-swappable HDD/SSD bays
SAS card is required for SAS devices support
SAS card is required for SAS devices support
SATA
-
SAS
Supported via add-on SAS Card
RAID
Intel® SATA RAID 0/1/5/10
Peripheral Drives
-
Expansion Slots
4 x NVIDIA Tesla® V100 SXM2 modules
Up to 300GB/s GPU interconnection by NVIDIA® NVLINK™ technology
2 x PCIe x16 slots (Gen3 x16), Low profile half-length
Up to 300GB/s GPU interconnection by NVIDIA® NVLINK™ technology
2 x PCIe x16 slots (Gen3 x16), Low profile half-length
Internal I/O
2 x power supply connectors
1 x Back plane power connector
1 x Mini-SAS HD SFF8643 connector
1 x USB 3.0 header
1 x COM
1 x TPM header
1 x PMBUS header
1 x IPMB connector
1 x Clear CMOS jumper
1 x Back plane power connector
1 x Mini-SAS HD SFF8643 connector
1 x USB 3.0 header
1 x COM
1 x TPM header
1 x PMBUS header
1 x IPMB connector
1 x Clear CMOS jumper
Front I/O
2 x USB 3.0
3 x RJ45
1 x VGA
1 x Power Button with LED
1 x ID Button with LED
1 x Reset Button
1 x NMI Button
3 x RJ45
1 x VGA
1 x Power Button with LED
1 x ID Button with LED
1 x Reset Button
1 x NMI Button
Rear I/O
-
Backplane Board
4 x SAS / SATA ports
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
Optional TPM2.0 kit: CTM000
Power Supply[#1]
2 x 2000W redundant PSU
80 PLUS Titanium AC input: - 1000W: 100-127V/ 12-9.5A, 50-60Hz - 1800W: 200-220V/ 10-9.5A, 50-60Hz - 1980W: 220-230V/ 10-9.8A, 50-60Hz - 2000W: 230-240V/ 10-9.8A, 50-60Hz DC output: Max 1000W@100-127V: +12V/ 83.3A +12Vsb/ 2.1A 1800W@200-220V +12V/ 150.0A +12Vsb/ 2.1A 1980W@220-230V +12V/ 165.0A +12Vsb/ 2.1A 2000W@200-240V +12V/ 166.7A +12Vsb/ 2.1A
NOTE: Redundant function could not be supported if SXM2 modules are fully populated
80 PLUS Titanium AC input: - 1000W: 100-127V/ 12-9.5A, 50-60Hz - 1800W: 200-220V/ 10-9.5A, 50-60Hz - 1980W: 220-230V/ 10-9.8A, 50-60Hz - 2000W: 230-240V/ 10-9.8A, 50-60Hz DC output: Max 1000W@100-127V: +12V/ 83.3A +12Vsb/ 2.1A 1800W@200-220V +12V/ 150.0A +12Vsb/ 2.1A 1980W@220-230V +12V/ 165.0A +12Vsb/ 2.1A 2000W@200-240V +12V/ 166.7A +12Vsb/ 2.1A
NOTE: Redundant function could not be supported if SXM2 modules are fully populated
System Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2008 R2 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
VMware ESXi 6.5
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
VMware ESXi 6.5
System Fans
10 x 40x56mm Dual Rotor Fan
4 x 40x56mm Single Rotor Fan
4 x 40x56mm Single Rotor Fan
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Gross Weight: 32Kg
Packaging Dimensions
1185 x 739 x 245 mm
Packaging Content
1 x G190-G30
2 x CPU heatsinks
4 x GPU heatsinks
1 x Rail kit
2 x CPU heatsinks
4 x GPU heatsinks
1 x Rail kit
Part Numbers
Barebone package: 6NG190G30MR-00
Part Numbers: - Motherboard: 9MG30NV0NR-00
- Rail kit: 25HB2-NJ2101-N1R
- CPU heatsink: 25ST1-423300-C1R
- GPU heatsink: 25ST1-253103-F2R
- NVLINK motherboard: 5CPBG300NR-00
- Back plane board: 9CBPG040NR-00
- Power supply: 25EP0-220003-C2S
- Front panel board: 9CFPG011NR-00
- PCIe x16 cable 660mm: 25CRF-660000-30R
- PCIe x16 cable 480mm: 25CRF-480000-30R
- PCIe x16 cable 210mm: 25CRF-210000-30R
Part Numbers: - Motherboard: 9MG30NV0NR-00
- Rail kit: 25HB2-NJ2101-N1R
- CPU heatsink: 25ST1-423300-C1R
- GPU heatsink: 25ST1-253103-F2R
- NVLINK motherboard: 5CPBG300NR-00
- Back plane board: 9CBPG040NR-00
- Power supply: 25EP0-220003-C2S
- Front panel board: 9CFPG011NR-00
- PCIe x16 cable 660mm: 25CRF-660000-30R
- PCIe x16 cable 480mm: 25CRF-480000-30R
- PCIe x16 cable 210mm: 25CRF-210000-30R
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
