The acronym “HPC” represents “high performance computing”. It refers broadly to a category of advanced computing that handles a larger amount of data, performs a more complex set of calculations, and runs at higher speeds than your average personal computer. This may align with the definition of a supercomputer; in fact, the two terms are sometimes used interchangeably, with some of the world’s most famous HPC systems functioning on the supercomputing scales of a quadrillion floating point operations per second (petaFLOPS), or even a quintillion floating point operations per second (exaFLOPS). But an enterprise (or any other organization) can still benefit from HPC, or even build its own HPC system, without contending for a spot on the “TOP500” list of the world’s supercomputers.

The trick to transcending the boundaries of an ordinary computer isn’t necessarily to build a “better” computer, but to pool multiple computing resources and form a “computing cluster”. The synergy that different types of processors can achieve through heterogeneous computing; the aggregation of storage devices in a secure and cohesive network; the deployment of high-throughput channels that eliminate latency—all these features and more enable HPC systems to perform like a supercomputer.

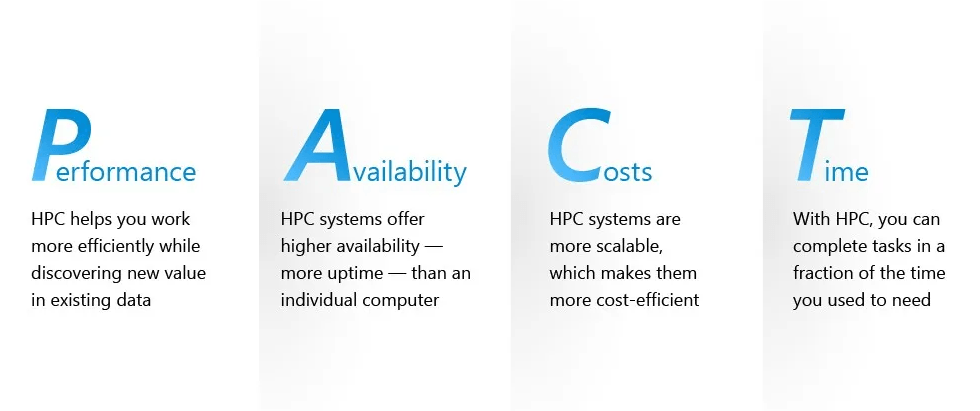

The advantages of an HPC system are numerous. Below, we highlight four benefits you can remember with a handy acronym we’ve invented: PACT, which stands for performance, availability, costs, and time.

It goes without saying that an HPC system offers better performance than an average PC, but that’s not what we’re talking about. An organization with access to HPC will outperform the competition, simply because existing tasks can be done more efficiently, and because new value can be gleaned from the data on hand.

Availability refers to the concept of “high availability”, which means IT equipment should offer as much uptime as possible to let users take full advantage of its services. This is becoming a basic requirement in the digital age, as more and more of our lives revolve around technological inventions.

It may seem counter-intuitive that a cluster of servers will be more cost-efficient than a single computer; but because computation is spread across multiple resources, an HPC system is more scalable. That is, the user can scale up (upgrade the CPU, GPU, memory, or other resources) and scale out (add more nodes into the cluster) when the need arises, rather than buying more equipment than is necessary at the outset in anticipation of future growth. Renting HPC resources from a cloud service provider (CSP) can further improve scalability and lower costs.

HPC systems are fast—blindingly fast. Your average consumer-grade PC functions at the level of gigaFLOPS (a billion FLOPS) or teraFLOPS (a trillion FLOPS). But as we’ve established, HPC systems are measured on the scale of petaFLOPS, or even exaFLOPS, which are orders of magnitude faster. Being able to complete calculations in a matter of minutes or hours, instead of days or months, is obviously a game changer.

When you consider all the benefits of HPC, it shouldn’t come as a surprise that many different vertical markets have already incorporated it into their daily operations. We have all gained from having access to HPC. Here is a quick look at different vertical sectors and the ways that HPC has made a difference.

As climate change affects weather patterns around the world, natural disasters like tsunamis and storm surges are becoming more dangerous. There is an acute need to study extreme weather and engineer our towns and cities to withstand them. That is what Shibayama Lab at Japan’s prestigious Waseda University, the “Center for Disaster Prevention around the World”, is doing with a powerful computing cluster built with GIGABYTE servers. Shibayama Lab uses GIGABYTE G221-Z30 and W291-Z00 to simulate natural disasters and test recovery plans by running highly detailed computer models at very fast speeds. Multiple simulations can be conducted simultaneously via parallel computing.

One of the most exciting inventions on the horizon is the autonomous vehicle. Computer vision and deep learning methods are used to “train” the car’s AI to detect, recognize, and react to road conditions—just like a human driver. HPC systems are crucial to the effective training of self-driving algorithms.

The energy sector, which includes the oil and gas industry, has begun to use HPC to look for new extraction sites. Complex 2D and 3D images gathered during geological surveys can be rapidly and accurately analyzed with HPC to determine the most suitable drilling locations, reducing the costs of exploration. For example, a French geosciences research company utilizes GIGABYTE’s G-Series GPU Server, outfitted with a highly dense configuration of six GPGPUs in a 1U (one rack unit) form factor, to improve the performance of their image recognition and data analytics processing, so they can deliver more accurate data in real-time.

Virtual reality (VR), augmented reality (AR), and mixed reality (MR) have already become part of our daily lives. Now that international tech giants have thrown their weight behind the creation of a “Metaverse”, it’s worth taking a look at how HPC can help.

Since HPC is one of the most advanced ways to compute, it stands to reason that many scientific breakthroughs rely heavily on HPC. For example, Lowell Observatory in Flagstaff, Arizona, which discovered Pluto in 1930, is on a quest to find habitable exoplanets in outer space. GIGABYTE’s G482-Z50 is used to analyze changes in our Sun’s radial velocity to discover the common signature of the stars, so superfluous “stellar noise” can be filtered out to accelerate the search. The European Organization for Nuclear Research (CERN), which operates the Large Hadron Collider (LHC), is another success case. GIGABYTE’s G482-Z51 processes the 40 terabytes of raw data generated every second by the particle accelerator to detect the elusive subatomic particle known as the beauty (or bottom) quark.

With HPC being so vital for scientific research, it should come as no surprise that universities and research institutes around the world are building their own HPC systems. In 2020, the Institute of Theoretical and Computational Chemistry at the University of Barcelona expanded its on-campus data center by adding a new HPC cluster, the “IQTC09”, composed of dozens of GIGABYTE servers. The College of Science at Taiwan Normal University has built the Center for Cloud Computing with GIGABYTE servers; what’s more, it is providing university courses to train HPC experts. An illustrious European tech university has purchased GIGABYTE’s H262-Z63 to bolster its work in engineering science, biochemistry, natural science, civil engineering, and mathematics.

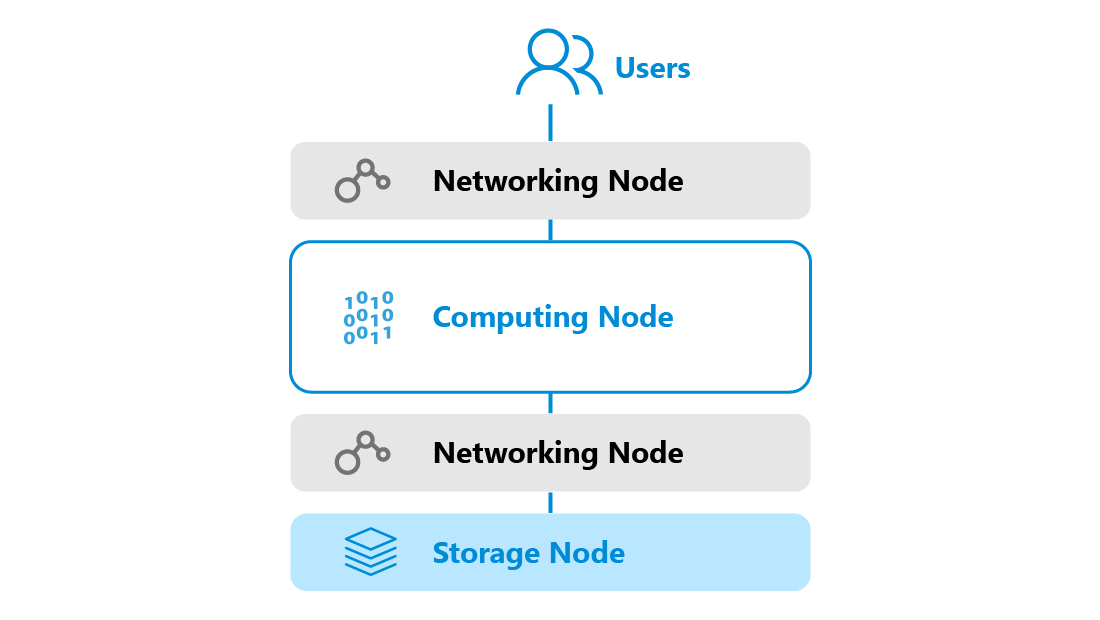

At its heart, the structure of an HPC system is not dissimilar to that of a data center or server room. It contains dozens, if not hundreds or even thousands, of servers and other peripheral devices. Depending on their functions, they can be categorized into three different types of nodes: computing, storage, and networking. The computing nodes can be seen as the brains of the entire operation—they perform calculations and complete assignments. The storage nodes store the requests and the responses. The networking nodes help the servers talk to each other within the system, and it connects the system to the outside world. In this way, an HPC system behaves like a singular, cohesive supercomputer—a whole that is greater than the sum of its parts.

To achieve HPC, the prowess of the computing layer—specifically, the performance of the processors—is crucial. The two CPU giants, AMD and Intel, are in a race to produce more powerful processors containing a higher number of cores and threads. An alternative to the x86 architecture is the ARM architecture, which utilizes a radically different design that allows a single processor to house an even higher number of cores. The lower power consumption of ARM processors also makes thermal management easier. Ultimately, the types of processors installed in an HPC system is largely dependent on the tasks the system is designed for.

Besides the CPU, the GPU (or GPGPU) accelerators installed in the computing node can also be a game-changer. These accelerators are apt at parallel computing, grid computing, and other forms of distributed computing. In other words, if the tasks on hand are optimized to work with accelerators, you can achieve HPC not only by purchasing powerful CPUs, but by adding the right GPUs. NVIDIA, AMD, and other tech leaders offer many competitive choices in the GPU market.

Let’s now look at the storage node. As mentioned, high availability is a rule of thumb when it comes to HPC—not only should the system be online as often as possible, data stored in an HPC system should be secure and accessible. RAID, a method of virtualization that combines multiple disks into a single unit to achieve redundancy, is often used in the storage node. The interface standard known as NVMe accelerates data transfer, so calculation in the computing node is not hampered by inadequate transfer speeds. In summary, although the storage node may not be the focal point of an HPC system, adopting the correct storage technologies can go a long way towards bolstering the system’s overall performance.

We hope we’ve been able to present an informative introduction to the concept of HPC, and how different vertical sectors have all benefited from the deployment of HPC systems. As the previous section has shown, the make-up of an HPC system is not complicated—it is similar to that of a server room or computing cluster. This means you could theoretically build your own; or, if that is not feasible, you could rent cloud-based HPC services from a data center. The crux of the problem is this: judging by your current requirements, do you really need HPC? If so, how can you procure HPC?

Individual needs will differ, of course, but we’ve narrowed the criteria down to three simple questions. If your answers to these three questions are a resounding “yes”, then congratulations—you have the potential to benefit from the latest computing trend that is HPC.

1. Do you work in a data-intensive computing environment that will benefit greatly from faster processing?
2. Do you work with, or want to work with, the latest technological breakthroughs, such as AI, IoT, and MLOps?
3. Do you have the manpower to develop and manage an HPC system, whether it’s on-premises or on the cloud; and do you have the know-how to adapt your tasks to fully benefit from HPC?

These questions should be considered carefully. HPC is not just about computing faster; it is about generating new value with supercomputing capabilities. Therefore, you may need to adjust the way you organize data and perform tasks to suit this new, advanced way of computing. There will be an “induction process”, so to speak, as the HPC system is installed (or the HPC services are rented), and your IT team is trained to work with the new tech. But once HPC is fully integrated into your workflow, you will begin to see the benefits. One day, you will look back on the time before HPC and wonder: how did you ever manage!

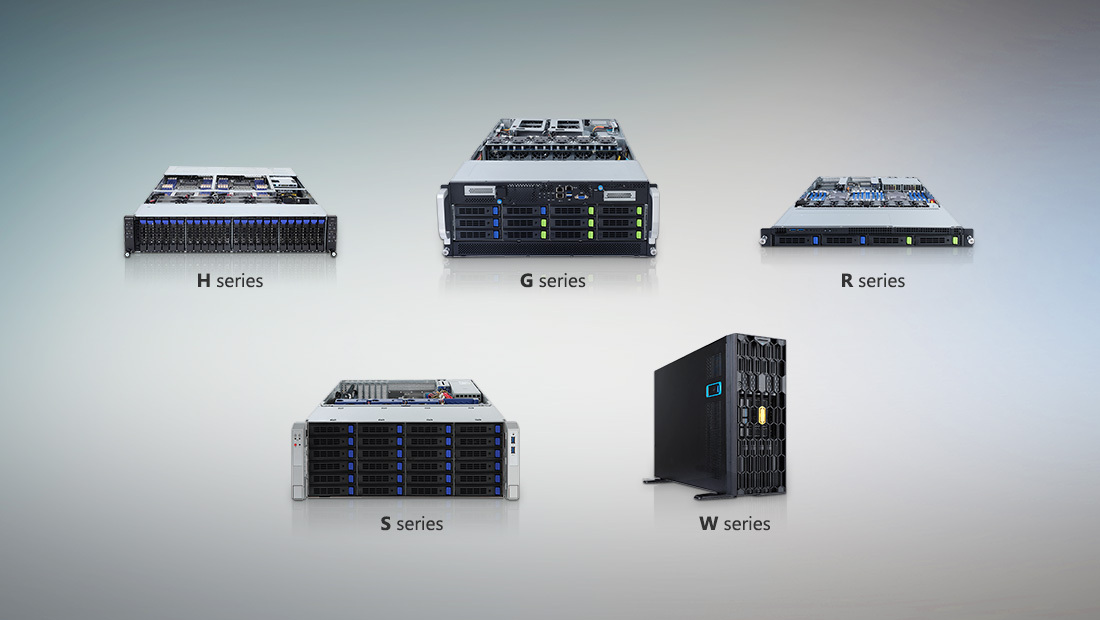

If you are looking for servers to fill the role of the control or computing node in your HPC cluster, you cannot go wrong with GIGABYTE’s H-Series High Density Servers. Optimized for HPC and hyper-converged infrastructure (HCI), H-Series products specialize in fitting as much processing power as possible into a smaller footprint. For example, if you choose a dual-CPU model powered by the latest AMD EPYC™ processors, you can fit as much as 512 cores and 1,024 threads in a single 2U chassis, which is an astounding 10,240 cores and 20,480 threads in a fully populated 42U server rack, with some room left for networking devices.

As mentioned, the path towards HPC is not necessarily through more powerful CPUs. For special tasks optimized for distributed computing, the addition of GPU accelerators can make all the difference. GIGABYTE’s G-Series GPU Servers are designed to support the use of GPUs, with some of the more expansive models capable of housing up to ten PCIe Gen4 GPU cards, or eight double slot GPU cards. Special interconnect architectures designed to maximize throughput and optimize GPU-to-GPU acceleration in a system with multiple graphics cards, such as NVIDIA® NVLink™, can be utilized to improve scalability, bandwidth, and the number of links between the GPUs.

Whereas H-Series and G-Series servers were envisioned to be more specialized solutions, R-Series Rack Servers were designed with versatility in mind. An optimal balance between efficiency and reliability was achieved to produce top-of-the-line servers that are ideal for business-critical workloads. They can be used in conjunction with H-Series or G-Series products in the HPC system to help you reach performance and budget goals.

S-Series Storage Servers adopt an ultra-dense design with room for multiple bays, making them highly recommended for an HPC system’s storage node. In addition to RAID, GIGABYTE servers also incorporate proprietary features such as Smart Crises Management and Protection (SCMP), Smart Ride Through (SmaRT), and Dual ROM Architecture to ensure reliability and high availability.

Unlike the aforementioned options, which were designed to be installed inside a standard server rack, GIGABYTE’s W-Series come in stand-alone chassis that are easier to set up and customize. Despite the unassuming appearance, these servers run on some of the most advanced processors in the market, making them a favorite among university laboratories and smaller studios that may not own a server room, but would like to enjoy the full benefits of an on-premises HPC system.
