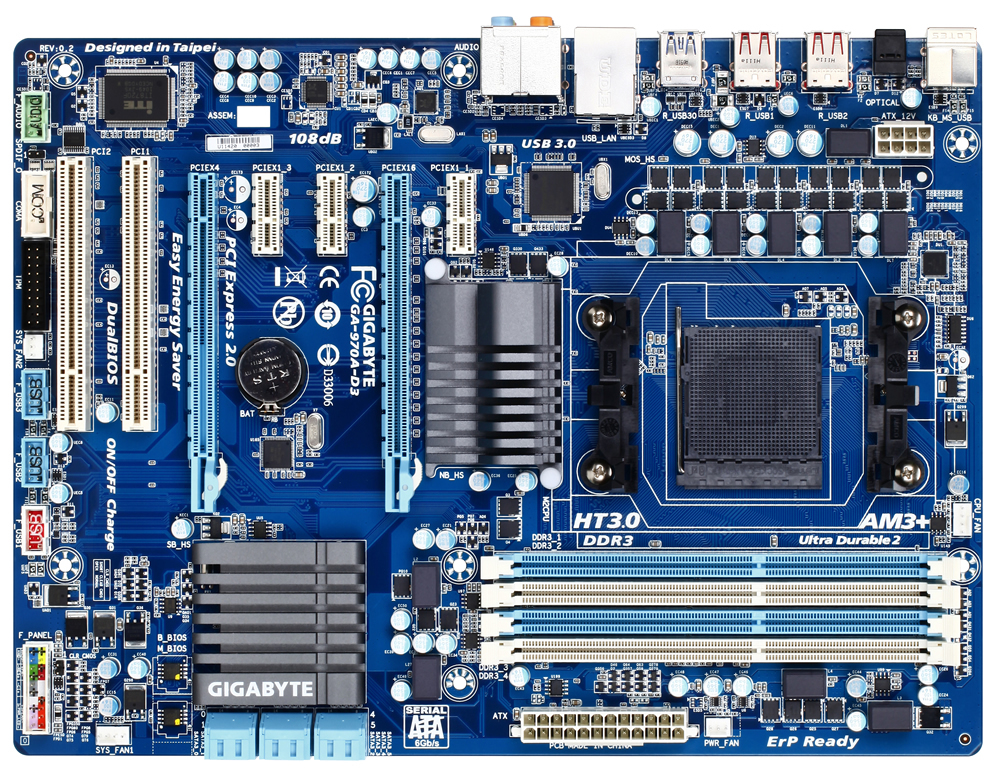

GA-970A-D3 (rev. 1.0/1.1)

パソコンが電源オフ状態でもUSB機器に電源を供給することができます。また、充電時間が最大で40％短縮することもできます（弊社調べ）...詳細はこちら
*携帯電話の機種によっては、クイック充電を有効にするためには、PCがS4/S5モードに入る前に携帯電話をPCに接続する必要があります。 充電時間は機種によって異なります。

GIGABYTEのAMDのマザーボードは、最新の次世代 AMD 32nm AM3+マルチコアCPUをサポートし、高性能なゲームやマルチメディア、マルチタスク対応ソフトを快適な環境を提供致します。

This motherboard designs with Split Power Plane, 4+1 phase VRM to support AMD the latest 45nm AM3 Phenom™II/ Athlon™II processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.

Yet another onboard feature of GIGABYTE AMD 900 series motherboards are integrated the latest AMD SB950 chip for high-speed SATA Revision 3.0 compatibility, delivering 6 ports native superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps) and RAID 0, 1, 5, 10 support. When used in RAID 0 (Stripe) mode, GIGABYTE AMD 900 series motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces.

* SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.

The GIGABYTE AMD 800A series motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard NEC uPD720200 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard NEC SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices.

GIGABYTE独自の「3倍USB電源」技術は、USBデバイスが必要とする電源を約3倍速で供給する技術です。独自で設計したUSB電源設計が電圧範囲におけるアウトプットを調整し、低抵抗の専用ヒューズが電圧降下の値を低く保つため、より安定的に電力をデバイスに送ることができます。

The AMD OverDrive™ utility is provided by AMD, offering high-end users the ability to maximize the capability, flexibility, and adjustability of the platforms utilizing AMD processors, sockets, and chipsets.
* For download site of AMD OverDrive™, please visit AMD official website for details: http://game.amd.com/us-en/drivers_overdrive.aspx
** The support condition of this utility may vary by models(chipsets).

Delivering native support for DDR3 memory up to 2000MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.

GIGABYTEは、2011年以降のマザーボードすべてが順次HDオーディオコーデックの対応を基準としました。
マルチチャネルHDオーディオをサポートする高性能なオーディオコーデックは、信号対雑音比（*SNR）108dBの優れた再生品質でBlu-rayを存分にお楽しみ頂けます。
（*SNRは信号の量に対するノイズの量で単位はdB[デシベル]で表されます。SNRが高ければ高いほど信号に対するノイズの量が少ないことがわかります）

Hybrid EFI Technology combines the benefits of GIGABYTE's mature BIOS platform including stability and compatibility with 3rd party products with 3TB+ HDD support from EFI technology, allowing GIGABYTE to offer the best of both worlds through a quick and easy BIOS update using GIGABYTE's @BIOS utility that is freely available from the GIGABYTE website.
GIGABYTE DualBIOS™ is a patented technology that automatically recovers BIOS data when the main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. In addition, GIGABYTE DualBIOS™ now supports 3TB+ (terabyte) hard drive booting without the need for partitioning, and enables more data storage on a single hard drive.

GIGABYTE Turbo XHD provides a quick and easy way to boost your hard drive performance. Just via the latest BIOS update, Turbo XHD will automatically enabled when the system detecting 2 new SATA3 HDDs and providing users effortlessly to set up a RAID 0/Strip configuration.
Note: Turbo XHD function only enabled for the SATA3 ports provided by AMD 800series with SB850 Chipset.

Flexible graphics capabilities - Up to 2 VGA cards are supported for 2 way AMD CrossFireX™ (running at x16, x4 bandwidth), delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
Note: Please update the latest version of BIOS from GIGABYTE website and VGA driver from vender’s website.

GIGABYTE was the first motherboard manufacturer to realize the importance of using only the highest quality components for the critically important CPU VRM zone of the motherboard which is responsible for delivering stable power to the CPU. The GIGABYTE Ultra Durable™ 2 Classic design utilizes Solid Capacitors manufactured in Japan which are rated to last for at least 50,000 hours in operational use. Also feature Ferrite Core Chokes with higher energy efficiency compared to more common iron core chokes and Lower RDS(on) MOSFETs which feature lower resistance, i.e. reduced power consumption and heat.

GIGABYTE innovative technology- Easy Energy Saver Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with AMD’s highly efficient processors, the Easy Energy Saver is able to provide exceptional levels of power savings and enhanced power efficiency without sacrificing computing performance.

CPUとメモリーを簡単にオーバークロックできるユーティリティソフト。ソフトウエア上でのオーバークロックのため、BIOSより安全にオーバークロックが行えます。また、装備したビデオカードのコアクロックとメモリークロックを変更することも可能です。

GIGABYTE Cloud OCは完全に新しいアプリケーションであり、インターネットブラウザ搭載のデバイスによりLAN、無線LANまたはBluetooth経由でシステムをオーバークロックできます。...詳細はこちら

AutoGreen技術は、あなたのブルートゥース携帯電話で自動的にPCのパワーを節約する機能です。
注意: GIGABYTE マザーボードはBluetooth^® レシーバーが含まれていません。別途 Bluetooth レシーバーが必要です。

Fast, comprehensive, and up-to-the-minute protection against online threats. It safeguards your computer, identity, and home network without slowing you down. It sets a new standard for speed and makes online shopping, banking, and browsing safer and more convenient than ever.

ErP（エネルギーに関連する商品全般を対象に環境配慮設計を義務付けるもの）で新しく設立されたヨーロッパ連合の環境規制法規です。ErPは電化製品の消費電力の効率性の向上環境への配慮を目的として設立されました。GIGABYTEのマザーボード製品は高性能システムと同時に省エネを実現したマザーボードです。
