R120-P30
Discontinued

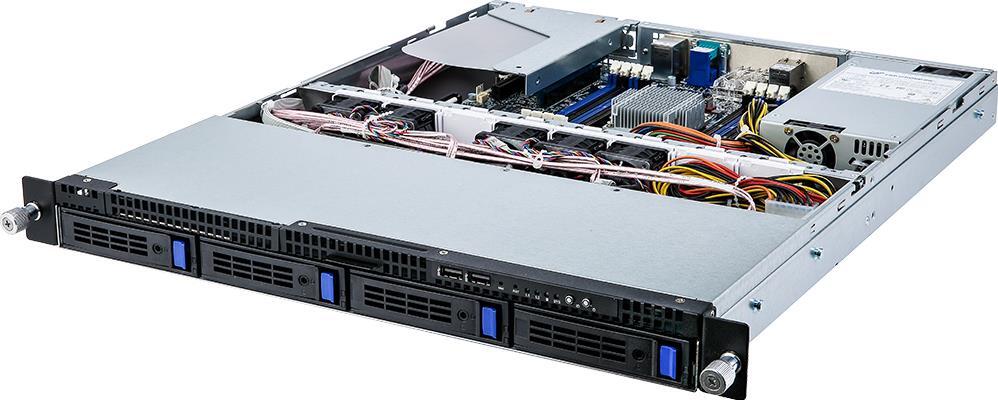

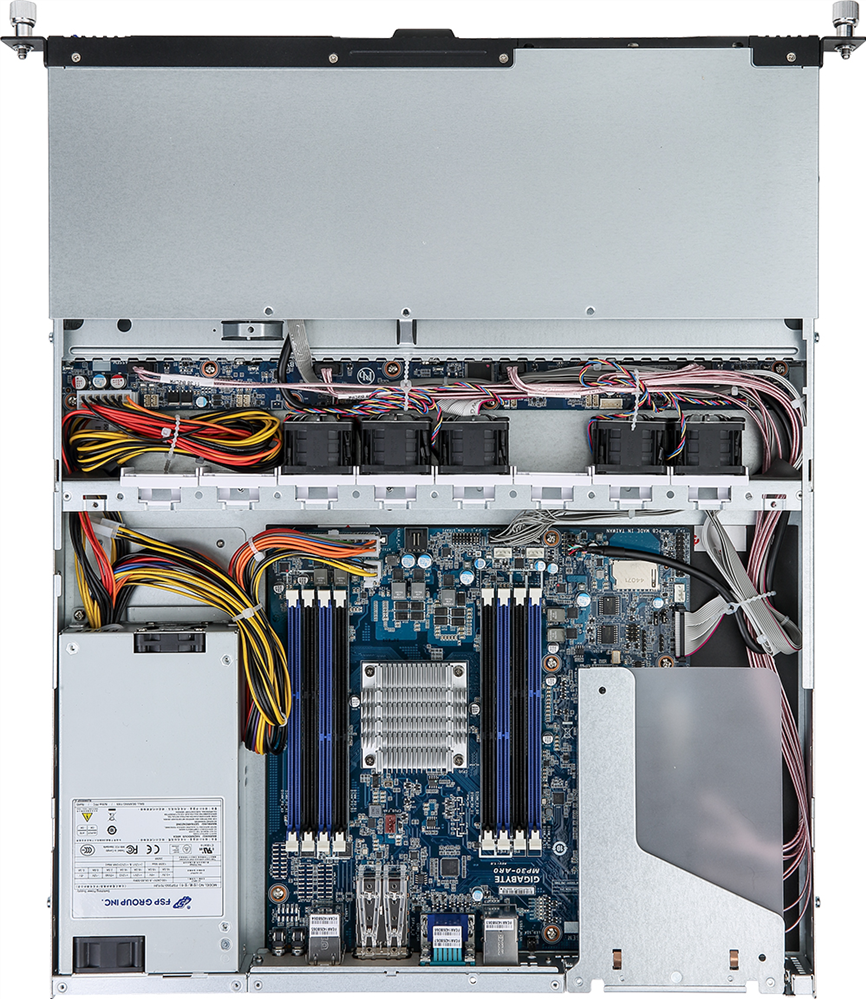

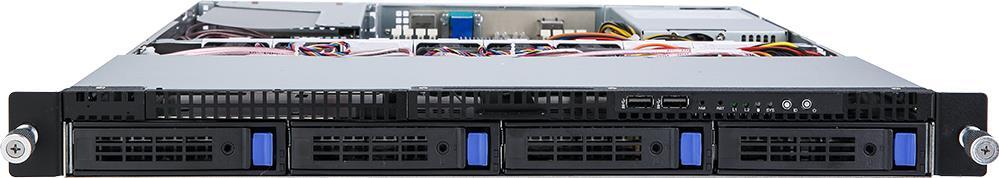

Single Socket 1U Rackmount Server ( uBoot Mode)
- AppliedMicro® X-Gene1® processor
- 8 x ECC UDIMM DDR3 DIMM slots
- 4 x 2.5"/3.5" hot-swappable HDD/SSD bays
- Supports SATA III 6Gb/s connections
- 2 x 10GbE SFP+ LAN ports
- 2 x GbE LAN ports (Marvell® 88E1512)
- 1 x 350W 80 PLUS Bronze 100~240V AC PSU
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
430 x 43.5 x 533.4 mm
430 x 43.5 x 533.4 mm
Motherboard
MP30-AR0
CPU
AppliedMicro® X-Gene 1 processor
ARMv8 architecture
8 cores
2.4 GHz
45W max. TDP
ARMv8 architecture
8 cores
2.4 GHz
45W max. TDP
Socket
-
Chipset
-
Memory
8 x DIMM slots
Quad channel memory architecture
RDIMM/ECC UDIMM modules supported
Single, dual rank UDIMM modules up to 8GB supported
Supported speeds:
- 1 DIMM per channel: up to 1600 MHz
- 2 DIMM per channel: up to 1333 MHz
Quad channel memory architecture
RDIMM/ECC UDIMM modules supported
Single, dual rank UDIMM modules up to 8GB supported
Supported speeds:
- 1 DIMM per channel: up to 1600 MHz
- 2 DIMM per channel: up to 1333 MHz
LAN
2 x 10GbE SFP+ LAN ports (integrated)
2 x GbE LAN ports (Marvell® 88E1512)
1 x 10/100/1000 management LAN
2 x GbE LAN ports (Marvell® 88E1512)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
Storage
4 x 2.5" / 3.5" hot-swappable HDD/SSD bays
SATA
4 x SATA III 6Gb/s ports
SAS
-
RAID
-
Peripheral Drives
-
Expansion Slots
1 x Full-length full-height slot
1 x PCIe x16 (Gen3 x8 bus) connector
1 x PCIe x16 (Gen3 x8 bus) connector
Internal I/O
1 x 24-pin ATX main power connector
2 x 4-pin ATX 12V power connectors
4 x SATA III 6Gb/s ports
1 x CPU fan header
4 x System fan headers
1 x SD card slot
1 x USB 2.0 header
2 x Front panel headers
1 x APM strap header
1 x HDD back plane board header
1 x PMBUS header
1 x BMC JTAG header
1 x JTAG PLD header
1 x BIOS_H header
1 x Chassis intrusion header
1 x SATA DOM jumper
1 x BIOS recovery jumper
1 x ACK selection jumper
1 x IPMB connector
2 x 4-pin ATX 12V power connectors
4 x SATA III 6Gb/s ports
1 x CPU fan header
4 x System fan headers
1 x SD card slot
1 x USB 2.0 header
2 x Front panel headers
1 x APM strap header
1 x HDD back plane board header
1 x PMBUS header
1 x BMC JTAG header
1 x JTAG PLD header
1 x BIOS_H header
1 x Chassis intrusion header
1 x SATA DOM jumper
1 x BIOS recovery jumper
1 x ACK selection jumper
1 x IPMB connector
Front I/O
2 x USB 2.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs

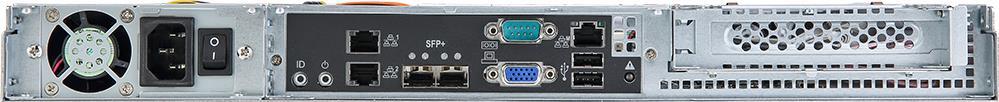

Rear I/O
2 x USB 2.0
2 x SFP+
3 x RJ45
1 x VGA
1 x Serial
1 x Power button with LED
1 x ID button with LED
1 x System status LED
2 x SFP+
3 x RJ45
1 x VGA
1 x Serial
1 x Power button with LED
1 x ID button with LED
1 x System status LED
Backplane Board
4 x SATA 6Gb/s ports
TPM
-
Power Supply
1 x 350W PSU
80 PLUS Bronze
100~240V AC
80 PLUS Bronze
100~240V AC
System Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Open Linux (included)
System Fans
5 x 40x40x28mm (18’000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
7.91 kg (barebone)
Packaging Dimensions
800x570x220 mm
Packaging Content
- 1 x Quick Start Guide
- Rail kit: 25HB2-086300-I0R
- Rail kit: 25HB2-086300-I0R
Part Numbers
Rackmount: 6NR120P30MR-00
Rail Kit: 25HB2-086300-I0R
Rail Kit: 25HB2-086300-I0R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
