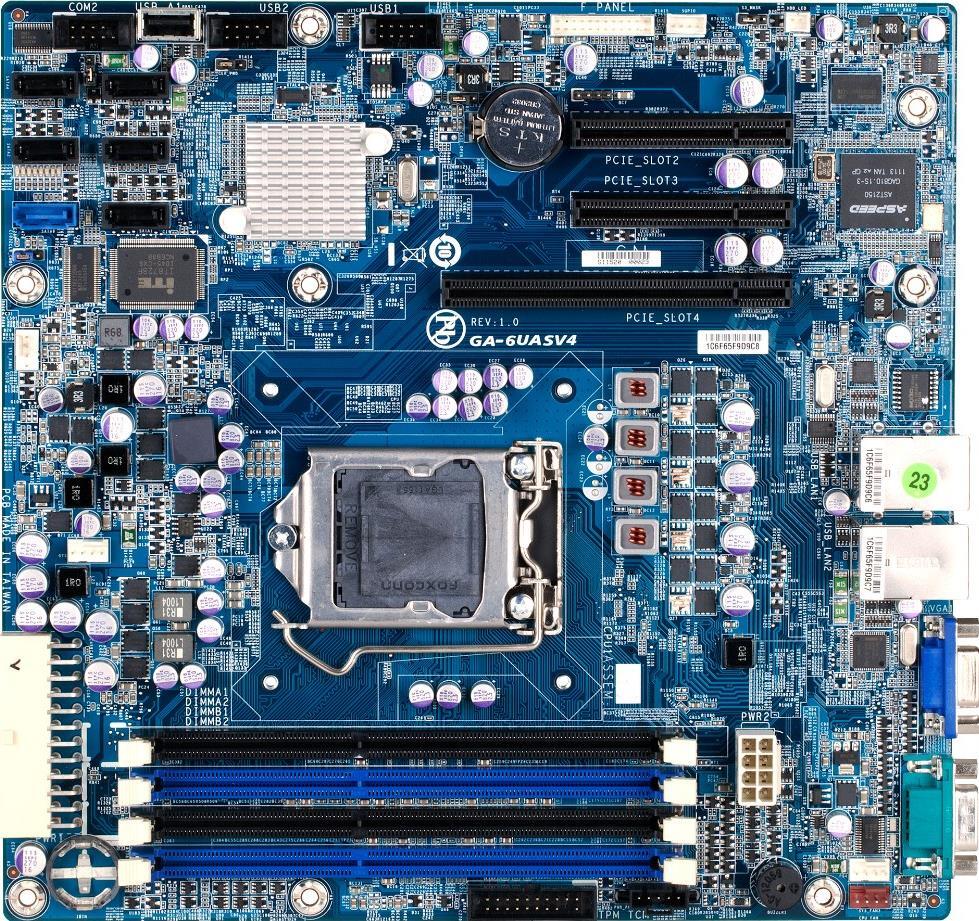

GA-6UASV4Legacy | Firmware updates supported
Intel C202 Chipset
- Single socket server motherboard based on Intel Xeon E3-1200 V2 Series processors
- Intel C202 chipset
- 4 x DDR3 UDIMM ECC, up to 32GB 1600/1066/1333MT/s 2DPC
- BMC with ASPEED AST2150
- 6 x SATA II 3Gb/s
- 2 x GbE LAN
- Overview
- Specifications
- Support
- Related Resources
Specifications
Form Factor
Micro ATX
243mm x 233mm
243mm x 233mm
CPU
Intel Xeon E3-1200 V2 Series
LGA 1155 H2
LGA 1155 H2
Chipset
Intel C202
Memory
4 x DDR3 UDIMM ECC slots
Supports 1600/1066/1333MT/s at 2DPC
Single/dual rank
Up to 32GB
Supports 1600/1066/1333MT/s at 2DPC
Single/dual rank
Up to 32GB
LAN
2 x GbE Ethernet LAN controllers
Intel 82579LM PHY
Intel 82574L
Intel 82579LM PHY
Intel 82574L
Video
Integrated in BMC
DDR2 128MB VRAM
DDR2 128MB VRAM
SATA
6 x SATA II 3Gb/s
RAID
Intel SATA SW RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (@Gen 3.0 x8 bus)
1 x PCIe x8 (@Gen 3.0 x8 bus)
1 x PCIe x8 (@Gen 2.0 x4 bus)
Internal I/O
4 x USB 2.0
1 x USB 2.0 vertical type-A
Rear I/O
1 x COM
1 x VGA
2 x RJ45
4 x USB 2.0
1 x VGA
2 x RJ45
4 x USB 2.0
Board Management
ASPEED AST2150
IPMI 2.0
IPMI 2.0
