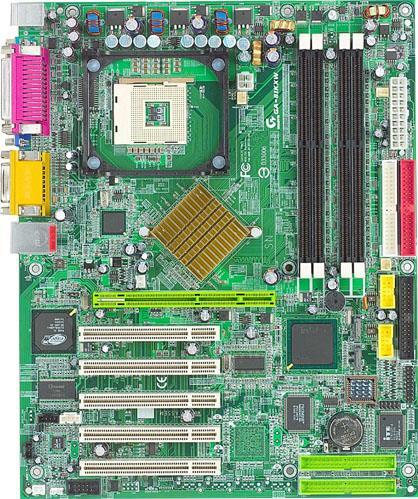

GA-8IKXR

Discontinued

Rev. 1.0

Intel^® Canterwood, 82801ER I/O Controller Hub 5R
Intel^® P4 Northwood and Prescott Processor
Supports socket 478 , 533/800MHz FSB up to 3.6GHz
Max. 4GB Un-buffered ECC DDR-333/400 Memory in 4DIMM Slots
AGP 8X, AC97 6CH Audio + Game
SATA x2 (Built in ICH5R), PATA 100x2 (Built in ICH5R)
Promise^®20276 Dual ATA-133 Channels with RAID 0,1
Intel^® Kenai-II CSA Gigabit Ethernet x 1 (82547EI)
ITE^®IT8712F-A Super I/O and Hardware Monitor
ATX 12"W x 9.6"D, Power (20-Pin, 4-Pin, 12V. Auxiliary), VRM 10.0

SPECIFICATIONS

CPU

Supports Intel® P4 Northwood and Prescott Processor up to 3.6 GHz
Supports 533/800MHz FSB
Socket 478

Chipset

Intel^®875P, 82801ER I/O Controller Hub 5R

LAN

Intel^® 82547EI Gigabit Ethernet Controller
Intel^® Pro Server Adapter Utility
Adapter Fault Tolerance (AFT)
Adaptive Load Balancing (ALB)
EtherChannel* (FEC/GEC)
Wake On LAN (WOL)
Wake On Modem (WOM)

Video

ATI^® Rage-XL on board with 8MB memory

IDE / SCSI

Promise^®PDC20276 controller supports dual ATA -133 channels
Intel^®82801ER I/O Controller Hub 5R supports dual ATA 100 IDE channels

RAID

Dual ATA 133 IDE channels (Promise^®PDC20276)with RAID 0,1

Expansion Slots

5 x PCI 32-Bit/33Mhz

Rear I/O

2 x PS/2
4 x USB2.0 (Two at front, two at rear)
1 x COM
1 x VGA
1 x LPT
1 x LAN RJ45

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SUPPORT

Downloads

Driver
BIOS
Utility

Manual
Support List

Online Support

Driver

BIOS

Utility

QVL

All
All
Windows XP 32bit
Windows Server 2003 32bit
Windows NT
Windows Me
Windows 98
Windows 95
Windows 2000

Chipset Update Patch

Version

Size

Date

Intel 875P Chipset driver

Version : 5.00.1012

11.85 MB

Aug 20, 2003

Download

OS: Windows 95,Windows 98,Windows Me,Windows 2000,Windows XP 32bit

RAID IDE

Version

Size

Date

Promise 20276 driverContains driver of ATA133/IDE RAID

Version : 2.00.1020.30

2.1 MB

Nov 18, 2009

Download

OS: Windows 95,Windows 98,Windows Me,Windows NT,Windows 2000,Windows XP 32bit

Promise WHQL driver for Win2003

Version : 2.00.1.33 - 5

0.28 MB

Nov 18, 2009

Download

OS: Windows Server 2003 32bit

RedHat 8.0/9.0 IDE RAID driver

Version : 1.03.0.1

0.56 MB

Nov 18, 2009

Download

VGA

Version

Size

Date

VGA drivers

Version : J5.30.0

40.25 MB

Aug 11, 2003

Download

OS: Windows NT,Windows 2000,Windows XP 32bit

BIOS

Description

Version

Size

Date

Support E-0 stepping CPU

Version : F6

0.37 MB

Feb 23, 2005

Download

Support Intel FMB1.5SPEC for Prescott CPU

Version : F5

0.37 MB

Jan 05, 2005

Download

Add AGP and AC97 audio function
Fixed system resume from S3 is fail
Fixed LAN can’t wake up from S5
Remove Load Fail-Safe Defaults Item from BIOS SETUP

Version : F4

0.37 MB

Apr 07, 2004

Download
