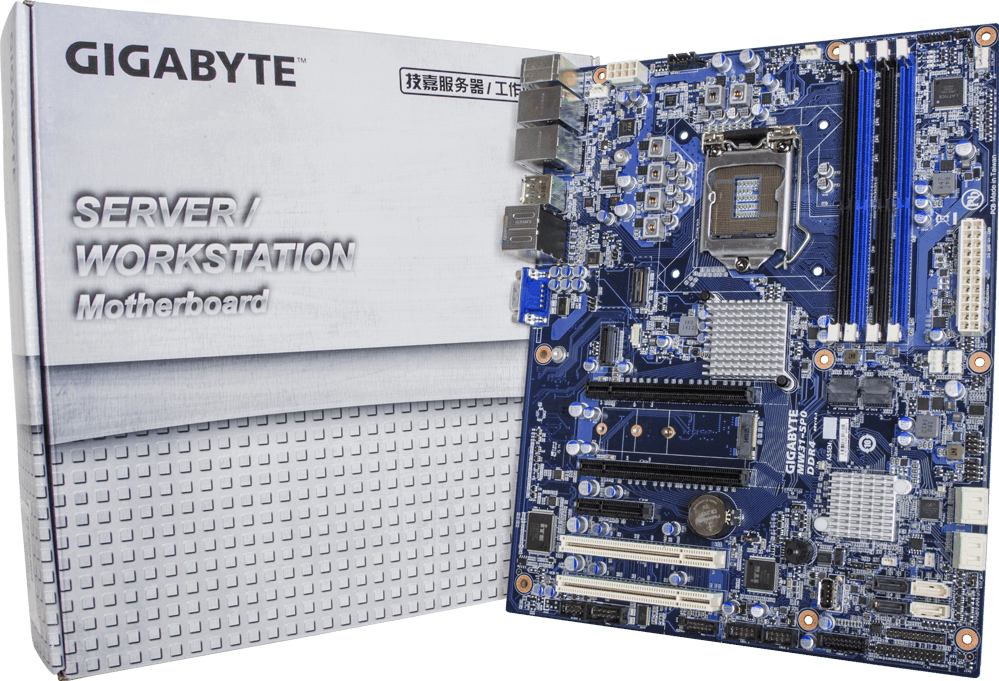

- MW31-SP0
MW31-SP0 (rev. 1.0)
Intel® C236 chipset
- ATX form factor
- Intel® Xeon® processors E3-1200 V6/V5 product family
- Intel® C236 Express Chipset
- 4 x UDIMM slots, DDR4 2400MHz
- 2 x GbE LAN ports (Intel® I210 + I219)
- Realtek® ALC887 controller
- 8 x SATA 6Gb/s onboard connecttors
- 1 x M.2 slot with PCIe Gen3 x4 M-key
- 2 x PCIe Gen3 x16 slots
- 2 x tranditional PCI slots
- Supports 2-Way NVIDIA® SLI™ / AMD® CrossFireX™
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
ATX
305W x 244D (mm)
305W x 244D (mm)
CPU
Intel® Xeon® processor E3-1200 V6/V5 product family
7th/ 6th Gen Intel® Core™ i3 processors, Intel® Celeron® processors, Intel® Pentium® processors
Socket
1 x LGA 1151
Chipset
Intel® C236
Memory
4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 64GB
Supported speeds: 2400/2133 MHz
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 64GB
Supported speeds: 2400/2133 MHz
LAN
2 x GbE LAN ports (Intel® I210 + I219LM)
Video
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 4096x2160@24 Hz or 3840x2160@60 Hz * Support for DisplayPort 1.2 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version.
Audio
Realtek® ALC887 controller
Supports 2/4/5.1/7.1 channel configurations
Supports 2/4/5.1/7.1 channel configurations
SAS
-
SATA
4 x SATA III 6Gb/s ports
4 x SATA III 6Gb/s ports (Marvell® 9230 controller)
4 x SATA III 6Gb/s ports (Marvell® 9230 controller)
RAID
Intel® SATA RAID 0/1/10/5
Marvell® SATA RAID 0/1/10
Marvell® SATA RAID 0/1/10
Expansion Slots
2 x PCIe x16 (Gen3 x16 bus) connectors
1 x PCIe x4 (Gen3 x2 bus) connector
1 x PCIe x4 (Gen3 x4 bus) mezzanine card slot
2 x PCI connectors
Support NVIDIA® SLI™ and AMD® CrossFireX™ technologies (2-way)
1 x M.2 (Gen3 x4 bus) slot:
- Socket 3
- M-key
- Max. width: 22mm
- Max. length: 80mm
1 x PCIe x4 (Gen3 x2 bus) connector
1 x PCIe x4 (Gen3 x4 bus) mezzanine card slot
2 x PCI connectors
Support NVIDIA® SLI™ and AMD® CrossFireX™ technologies (2-way)
1 x M.2 (Gen3 x4 bus) slot:
- Socket 3
- M-key
- Max. width: 22mm
- Max. length: 80mm
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
8 x SATA III 6Gb/s ports
1 x USB 2.0 vertical type A port
1 x CPU fan header
4 x System fan headers
1 x USB 3.0 header
2 x USB 2.0 headers
1 x TPM header
1 x Serial header
1 x Front audio header
1 x S/PDIF-In header
1 x S/PDIF-Out header
1 x Front panel header
1 x HDD back plane board header
1 x SATA GPIO header
1 x JTAG header
1 x Chassis intrusion header
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x ME update jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x Force to stop FRB3 timer jumper
1 x CPLD jumper
1 x SMB selection jumper
1 x PMBus connector
2 x SATA DOM connectors
1 x 8-pin ATX 12V power connector
8 x SATA III 6Gb/s ports
1 x USB 2.0 vertical type A port
1 x CPU fan header
4 x System fan headers
1 x USB 3.0 header
2 x USB 2.0 headers
1 x TPM header
1 x Serial header
1 x Front audio header
1 x S/PDIF-In header
1 x S/PDIF-Out header
1 x Front panel header
1 x HDD back plane board header
1 x SATA GPIO header
1 x JTAG header
1 x Chassis intrusion header
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x ME update jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x Force to stop FRB3 timer jumper
1 x CPLD jumper
1 x SMB selection jumper
1 x PMBus connector
2 x SATA DOM connectors
Rear I/O
4 x USB 3.0
2 x USB 2.0
1 x PS/2
1 x HDMI
1 x DisplayPort
1 x Serial
2 x RJ45
5 x Audio jacks
1 x Optical S/PDIF-Out
2 x USB 2.0
1 x PS/2
1 x HDMI
1 x DisplayPort
1 x Serial
2 x RJ45
5 x Audio jacks
1 x Optical S/PDIF-Out
TPM
1 x TPM header
OS Compatibility
Windows 10 (x64)
Windows 8.1 (x64)
Windows 7 Ultimate SP1 (x86)
Windows 8.1 (x64)
Windows 7 Ultimate SP1 (x86)
Board Management
-
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Operating Properties
Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MW31-SP0
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables
1 x CrossFire™ bridge
1 x 2-SLI™ bridge
Box dimensions: 360 x 330 x 80 mm
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables
1 x CrossFire™ bridge
1 x 2-SLI™ bridge
Box dimensions: 360 x 330 x 80 mm
Bulk Packaging Content
10 x MW31-SP0
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
Reference Numbers
Retail: 9MW31SP0MR-00
Bulk: 9MW31SP0NR-00
Bulk: 9MW31SP0NR-00
