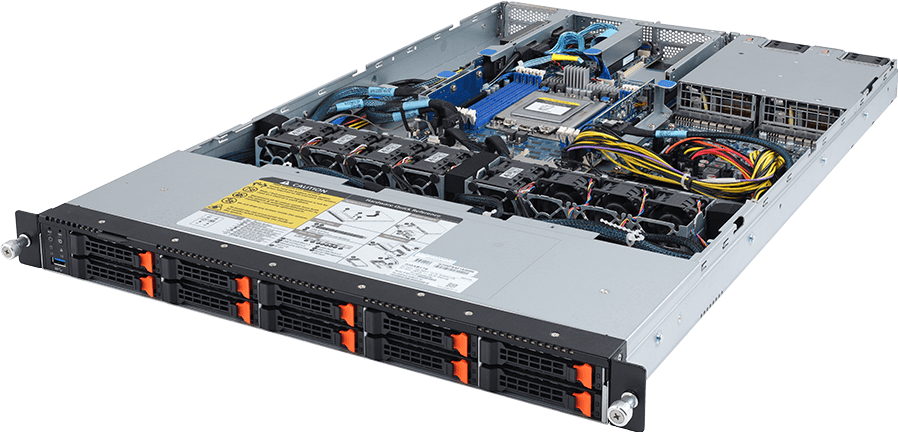

Rack Server - AMD EPYC™ 7003/7002 - 1U UP 10-Bay Gen3 NVMe/SATA/SAS
- Compatible with 3 x NVIDIA Tesla® PCIe GPUs
- Supports GRAID SupremeRAID NVMe/NVMe-oF RAID Card
- Single AMD EPYC™ 7003/7002 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 8 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 6 x 2.5" Gen3 NVMe/SATA/SAS hot-swap bays
- 4 x 2.5" Gen3 NVMe hot-swap bays
- 3 x M.2 slots with PCIe Gen3 x4 interface
- 1 x LP PCIe Gen4 x16 slot
- 2 x LP PCIe Gen3 x16 slots
- 1 x OCP 2.0 Gen3 x16 mezzanine slot
- 1+1 1200W 80 PLUS Platinum redundant power supplies
Specifications
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 730
438 x 43.5 x 730
Motherboard
MZ12-HD2 Rev. 3.0
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Single processor, cTDP up to 240W
- At 30°C ambient, cTDP up to 280W
[Note] NVIDIA Tesla GPU not supported when using 280W CPUs.
AMD EPYC™ 7002 Series Processors
Single processor, cTDP up to 240W
- At 30°C ambient, cTDP up to 280W
[Note] NVIDIA Tesla GPU not supported when using 280W CPUs.
Chipset
System on Chip
Memory
8 x DIMM slots
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200 MT/s
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200 MT/s
LAN
Rear:
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front hot-swap:
6 x 2.5" Gen3 NVMe/SATA/SAS [1]
4 x 2.5" Gen3 NVMe
Internal M.2 (CMTP052):
2 x M.2 (2260/2280), PCIe Gen3 x4
Internal M.2:
1 x M.2 (2242/2260/2280/22110), PCIe Gen3 x4 [2]
[1] SAS card is required to support SAS drives.
[2] CPU TDP is limited to 155W when using M.2 drives.
6 x 2.5" Gen3 NVMe/SATA/SAS [1]
4 x 2.5" Gen3 NVMe
Internal M.2 (CMTP052):
2 x M.2 (2260/2280), PCIe Gen3 x4
Internal M.2:
1 x M.2 (2242/2260/2280/22110), PCIe Gen3 x4 [2]
[1] SAS card is required to support SAS drives.
[2] CPU TDP is limited to 155W when using M.2 drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
PCIe Expansion Slots
Riser Card CRSH01D:
- 1 x LP x16 (Gen4 x16)
Riser Card CRS1060:
- 2 x LP x16 (Gen3 x16)
1 x OCP 2.0 mezzanine (Gen3 x16)(Type1, P1, P2, P3, P4)
- Supports NCSI function
[Note] The system is only validated with a uniform GPU model.
- 1 x LP x16 (Gen4 x16)
Riser Card CRS1060:
- 2 x LP x16 (Gen3 x16)
1 x OCP 2.0 mezzanine (Gen3 x16)(Type1, P1, P2, P3, P4)
- Supports NCSI function
[Note] The system is only validated with a uniform GPU model.
Front I/O
1 x USB 3.0 port (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.0 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x ID LED
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x ID LED
Backplane Board
Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply[#1]
1+1 1200W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
System Management
ASPEED® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
3 x 40x40x28mm (18,000rpm)
5 x 40x40x56mm (23,000rpm)
5 x 40x40x56mm (23,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 11.95 kg
Gross Weight: 20.5 kg
Gross Weight: 20.5 kg
Packaging Dimensions
985 x 588 x 250 mm
Packaging Content
1 x R162-Z10
1 x CPU heatsink
1 x 2-Section Rail kit
1 x CPU heatsink
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR162Z10MR-00-A*
- Motherboard: 9MZ12HD2NR-00*
- 2-Section Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320M-A3R
- Backplane board - CBP10A1: 9CBP10A1NR-00*
- M.2 Riser card - CMTP052: 9CMTP052NR-00*
- Riser card - CRSH01D: 9CRSH01DNR-00*
- Riser card - CRS1060: 9CRS1060NR-00*
- Fan module: 25ST2-44562G-D0R/25ST2-442824-D0R
- Power supply: 25EP0-212008-D0S
Optional parts:
- GRAID SupremeRAID Core Software Module License
- Motherboard: 9MZ12HD2NR-00*
- 2-Section Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320M-A3R
- Backplane board - CBP10A1: 9CBP10A1NR-00*
- M.2 Riser card - CMTP052: 9CMTP052NR-00*
- Riser card - CRSH01D: 9CRSH01DNR-00*
- Riser card - CRS1060: 9CRS1060NR-00*
- Fan module: 25ST2-44562G-D0R/25ST2-442824-D0R
- Power supply: 25EP0-212008-D0S
Optional parts:
- GRAID SupremeRAID Core Software Module License
a) SupremeRAID License: 25FC1-SRBUN3-AFS (12-native NVMe RAID)
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
