HPC/AI Server - 3rd Gen Intel® Xeon® Scalable - 2U DP 8 x PCIe Gen4 GPUs Immersion

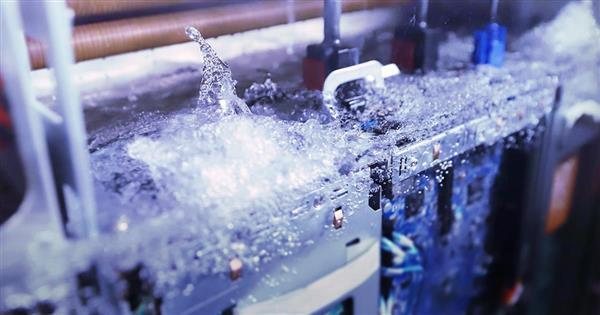

- Immersion Cooling Server
- Supports up to 8 x Dual slot Gen4 GPUs
- Dual 3rd Gen Intel® Xeon® Scalable Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 24 x DIMMs
- Dual ROM Architecture
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- 4 x 2.5" SATA/SAS hot-swappable bays
- 8 x FHFL PCIe Gen4 x16 slots for GPUs
- 2 x LP PCIe Gen4 x16 slots for add-in cards
- Dual 3200W 80 PLUS Platinum redundant power supply
* Materialele oferite aici sunt doar pentru referinţă. GIGABYTE îşi rezervă dreptul de a modifica sau revizui continutul oricând fără notificare prealabilă.
* Perfomanţa prezentată este bazată pe valorile teoretice maxime ale interfeţei de la vendorii respectivi de Chipset-uri sau de la organizaţiile ce au definit specificaţiile interfeţei. Perfomanţele reale pot varia în funcţie de sistem.
* Toate mărcile inregistrate şi logo-urile sunt proprietatea deţinătorilor respectivi.
* Datorită arhitecturii standard PC, o anumită cantitate de memorie este rezervată pentru sistem şi de aceea mărimea actuală a memoriei este mai mică decât cea indicată.
* Perfomanţa prezentată este bazată pe valorile teoretice maxime ale interfeţei de la vendorii respectivi de Chipset-uri sau de la organizaţiile ce au definit specificaţiile interfeţei. Perfomanţele reale pot varia în funcţie de sistem.
* Toate mărcile inregistrate şi logo-urile sunt proprietatea deţinătorilor respectivi.
* Datorită arhitecturii standard PC, o anumită cantitate de memorie este rezervată pentru sistem şi de aceea mărimea actuală a memoriei este mai mică decât cea indicată.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
448 x 87.5 x 800
448 x 87.5 x 800
Motherboard
MG52-G20
CPU
3rd Generation Intel® Xeon® Scalable Processors
Dual processor, 10nm technology
TDP up to 270W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Dual processor, 10nm technology
TDP up to 270W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4189
Socket P+
Socket P+
Chipset
Intel® C621A
Memory
24 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
1.2V modules: 3200/2933/2666 MT/s
DDR4 memory supported only
8-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
1.2V modules: 3200/2933/2666 MT/s
LAN
Top side:
2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Bottom side:
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" SATA/SAS hot-swappable bays
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1)
SAS card is required for SAS devices support
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" SATA/SAS hot-swappable bays
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1)
SAS card is required for SAS devices support
SAS
Depends on SAS add-in cards
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Riser Card CRSG620 x 2:
4 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88048, for GPUs
Riser Card CRSG621 x 2:
4 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88048, for GPUs
Riser Card CRSG01A x 2:
1 x PCIe x16 (Gen4 x16) low-profile slot on the top side, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot on the top side, from CPU_1
- Maximum limitation of GPU cards: 285mm (L) x 111.5mm (W) x 39.5mm (H).
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
4 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88048, for GPUs
Riser Card CRSG621 x 2:
4 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88048, for GPUs
Riser Card CRSG01A x 2:
1 x PCIe x16 (Gen4 x16) low-profile slot on the top side, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot on the top side, from CPU_1
- Maximum limitation of GPU cards: 285mm (L) x 111.5mm (W) x 39.5mm (H).
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
Internal I/O
1 x TPM header
1 x VROC connector
1 x VROC connector
Top I/O
2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 3200W 80 PLUS Platinum redundant power supply
AC Input:
- 100-127V~/ 14A, 50/60Hz
- 200-208V~/ 16A, 50/60Hz
- 214-234V~/ 16A, 50/60Hz
- 240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output: - Max 1106W/ 100-127V~
+12.3V/ 87A
+12Vsb/ 3A
- Max 2434W/ 200-208V~
+12.3V/ 195A
+12Vsb/ 3A
- Max 2828W/ 214-234V~
+12.3V/ 227A
+12Vsb/ 3A
- Max 3234W/ 240V~ or 240Vdc Input
+12.3V/ 260A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 14A, 50/60Hz
- 200-208V~/ 16A, 50/60Hz
- 214-234V~/ 16A, 50/60Hz
- 240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output: - Max 1106W/ 100-127V~
+12.3V/ 87A
+12Vsb/ 3A
- Max 2434W/ 200-208V~
+12.3V/ 195A
+12Vsb/ 3A
- Max 2828W/ 214-234V~
+12.3V/ 227A
+12Vsb/ 3A
- Max 3234W/ 240V~ or 240Vdc Input
+12.3V/ 260A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later
Windows Server 2016
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later
Windows Server 2016
Windows Server 2019
Windows Server 2022
Operating Properties
Operating coolant temperature: 25°C to 35°C
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1133 x 724 x 261 mm
Packaging Content
1 x G292-280-IAY1
2 x CPU heatsinks
2 x CPU heatsinks
Part Numbers
- Barebone package: 6NG292280DR000IAY1*
- Motherboard: 9MG52G20NR-00
- CPU heatsink: 25ST1-343203-M1R/25ST1-343204-M1R
- Backplane board - CBPG084: 9CBPG084NR-00
- Riser card - CRSG620: 9CRSG620NR-00
- Riser card - CRSG621: 9CRSG621NR-00
- Riser card - CRSG01A: 9CRSG01ANR-00
- Power supply: 25EP0-230008-D0S
Optional parts:
- VROC module: 25FD0-R181N0-10R (Supported for Intel SSD only)
- 2 x 7mm internal SSD cable kit: 6NG291281SR-00-100
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- RMA packaging: 6NG292280SR-RMA-I101
- Motherboard: 9MG52G20NR-00
- CPU heatsink: 25ST1-343203-M1R/25ST1-343204-M1R
- Backplane board - CBPG084: 9CBPG084NR-00
- Riser card - CRSG620: 9CRSG620NR-00
- Riser card - CRSG621: 9CRSG621NR-00
- Riser card - CRSG01A: 9CRSG01ANR-00
- Power supply: 25EP0-230008-D0S
Optional parts:
- VROC module: 25FD0-R181N0-10R (Supported for Intel SSD only)
- 2 x 7mm internal SSD cable kit: 6NG291281SR-00-100
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- RMA packaging: 6NG292280SR-RMA-I101
* Materialele oferite aici sunt doar pentru referinţă. GIGABYTE îşi rezervă dreptul de a modifica sau revizui continutul oricând fără notificare prealabilă.
* Perfomanţa prezentată este bazată pe valorile teoretice maxime ale interfeţei de la vendorii respectivi de Chipset-uri sau de la organizaţiile ce au definit specificaţiile interfeţei. Perfomanţele reale pot varia în funcţie de sistem.
* Toate mărcile inregistrate şi logo-urile sunt proprietatea deţinătorilor respectivi.
* Datorită arhitecturii standard PC, o anumită cantitate de memorie este rezervată pentru sistem şi de aceea mărimea actuală a memoriei este mai mică decât cea indicată.
* Perfomanţa prezentată este bazată pe valorile teoretice maxime ale interfeţei de la vendorii respectivi de Chipset-uri sau de la organizaţiile ce au definit specificaţiile interfeţei. Perfomanţele reale pot varia în funcţie de sistem.
* Toate mărcile inregistrate şi logo-urile sunt proprietatea deţinătorilor respectivi.
* Datorită arhitecturii standard PC, o anumită cantitate de memorie este rezervată pentru sistem şi de aceea mărimea actuală a memoriei este mai mică decât cea indicată.
