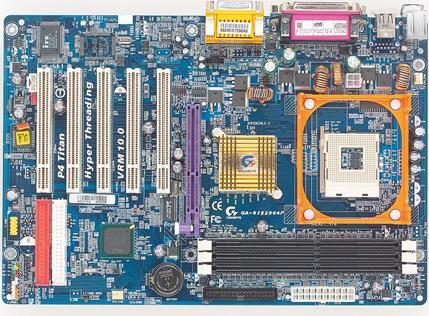

GA-8IE2004P (Rev. 1.0)

СпецификацииПоддержкаНовости & НаградыWhere to Buy

Спецификации

  • Процессор
    1. Socket 478 for Intel® Pentium® 4 processor
  • Front Side Bus
    1. (800*)/533/400 MHz
      *Note: FSB 800 support thru overclocking
  • Чипсет
    1. North Bridge : Intel® 845E MCH
    2. South Bridge : Intel® ICH4
    3. Integrated Peripherals :
      1. Realtek ALC655 CODEC
  • Разъёмы для плат расширения
    1. 1 x AGP 4X, supports 1.5V display card only
    2. 5 x PCI (PCI 2.2 compliant)
  • Разъемы на системной плате
    1. 2 x USB 2.0 (supports 4 ports by cable)
    2. 2 x UltraDMA 100/66 Bus Master IDE
    3. 1 x FDD
    4. CD/AUX in
  • Разъемы на задней панели
    1. 2 x USB 2.0 ports
    2. 2 x COM ports
    3. 1 x LPT port
    4. 3 x Audio ports(Line-in / Line-out / MIC)
    5. 2 x PS/2 ports (Keyboard/Mouse)
    6. 1 x Game / Midi port
  • Контроль за состоянием системы
    1. ITE 8712F
    2. System health status auto-detect and report by BIOS
    3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage,
  • ПО в комплекте поставки
    1. Norton Internet Security 2003
      1. Norton Anti Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Форм-фактор
    1. ATX
    2. 29.5cm x 20.0cm
  • CPU/AGP/DIMM setting
    1. CPU FSB / Multiplier adjustable via BIOS
    2. AGP Clock adjustable via BIOS
    3. DIMM Clock adjustable via BIOS
  • Driver
    1. Intel® chipset driver
    2. IAA (Intel® Application Accelerator)
    3. Realtek audio driver
  • Other Features
    1. IDE, SCSI, LS120, ZIP, CD-ROM and USB bootable
    2. Suspend to RAM (STR)
    3. Supports USB KB / MS wake up from S3
    4. Poly fuse for keyboard over-current protection
    5. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ NT/ 2000/ XP shut down and switch
  • Примечания
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Процессор
      1. Socket 478 for Intel® Pentium® 4 processor
    • Front Side Bus
      1. (800*)/533/400 MHz
        *Note: FSB 800 support thru overclocking
    • Чипсет
      1. North Bridge : Intel® 845E MCH
      2. South Bridge : Intel® ICH4
      3. Integrated Peripherals :
        1. Realtek ALC655 CODEC
    • Разъёмы для плат расширения
      1. 1 x AGP 4X, supports 1.5V display card only
      2. 5 x PCI (PCI 2.2 compliant)
    • Разъемы на системной плате
      1. 2 x USB 2.0 (supports 4 ports by cable)
      2. 2 x UltraDMA 100/66 Bus Master IDE
      3. 1 x FDD
      4. CD/AUX in
    • Разъемы на задней панели
      1. 2 x USB 2.0 ports
      2. 2 x COM ports
      3. 1 x LPT port
      4. 3 x Audio ports(Line-in / Line-out / MIC)
      5. 2 x PS/2 ports (Keyboard/Mouse)
      6. 1 x Game / Midi port
    • Контроль за состоянием системы
      1. ITE 8712F
      2. System health status auto-detect and report by BIOS
      3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage,
    • ПО в комплекте поставки
      1. Norton Internet Security 2003
        1. Norton Anti Virus™
        2. Norton™ Personal Firewall
        3. Norton™ Privacy Control
        4. Norton™ Parental Control
        5. Norton™ Spam Alert
      2. GIGABYTE Windows Utility Manager
      3. Adobe Acrobat Reader
    • Форм-фактор
      1. ATX
      2. 29.5cm x 20.0cm
    • CPU/AGP/DIMM setting
      1. CPU FSB / Multiplier adjustable via BIOS
      2. AGP Clock adjustable via BIOS
      3. DIMM Clock adjustable via BIOS
    • Driver
      1. Intel® chipset driver
      2. IAA (Intel® Application Accelerator)
      3. Realtek audio driver
    • Other Features
      1. IDE, SCSI, LS120, ZIP, CD-ROM and USB bootable
      2. Suspend to RAM (STR)
      3. Supports USB KB / MS wake up from S3
      4. Poly fuse for keyboard over-current protection
      5. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
    • Power
      1. ATX power connector and ATX 12V connector
      2. Power-off by Windows 98/ Me/ NT/ 2000/ XP shut down and switch
    • Примечания
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Термины HDMI, HDMI High-Definition Multimedia Interface, фирменный стиль HDMI и логотип HDMI являются товарными знаками или зарегистрированными товарными знаками компании HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
