D120-S3G

Legacy | Software updates supported

Rev. 220 Rev. A00

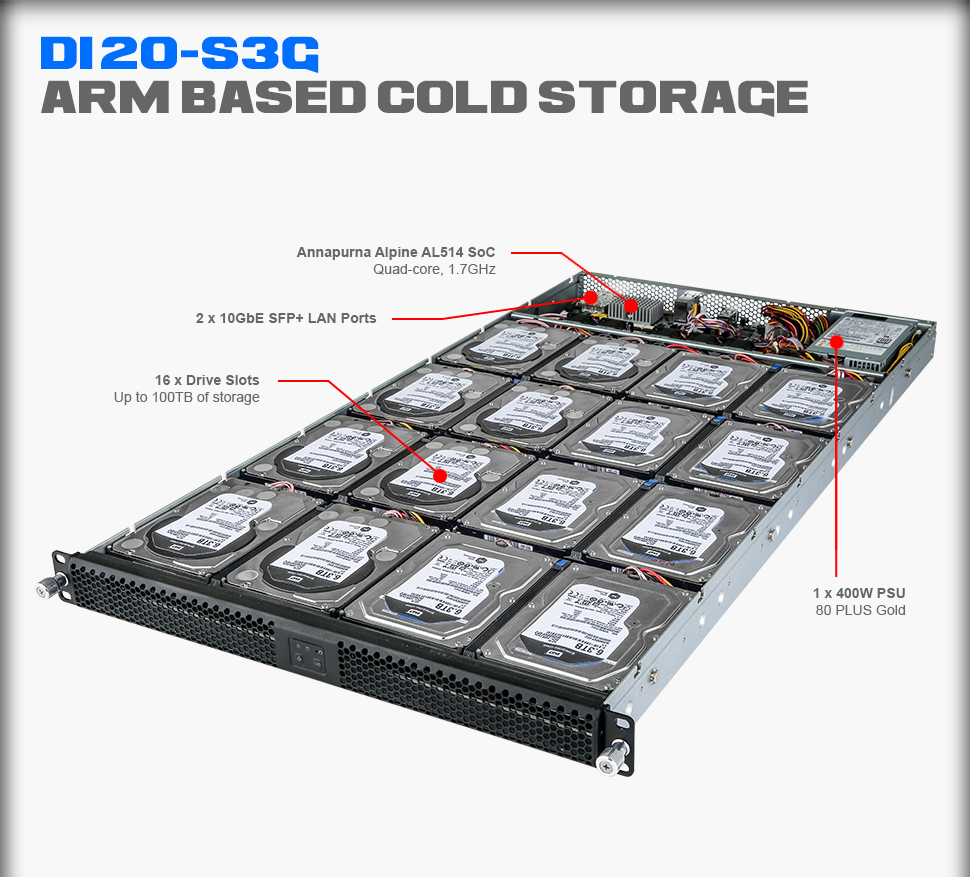

1U ARM Rackmount Cold Storage(Command Mode)

Annapurna Alpine AL514 quad-core 1.7GHz processor
1 x ECC DIMM slot, up to max. 8GB
16 x 3.5" HDD slots, up to 100TB
Supports SATA III 6Gb/s connections
2 x 10GbE SFP+ LAN ports (integrated)
2 x GbE LAN ports (Atheros^® AR8035)
1 x 400W 80 PLUS Gold 100~240V AC PSU

[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.

SPECIFICATIONS

Dimensions (WxHxD, mm)

1U
438 x 43.5 x 860

Motherboard

ML00-AR0

CPU

Annapurna Labs^® Alpine AL514 processor
ARMv7 architecture
Cortex-A15 quad-core, 1.7GHz

Socket

Chipset

Memory

1 x DIMM slot
RDIMM/ECC-UDIMM modules supported
1600 MHz DDR3/DDR3L memory supported
Support 1Rx8 / 1Rx16 memory modules (max. 4GB)
Support 2Rx8 / 2Rx16 memory modules (max. 8GB)
4GB DDR3L memory pre-installed

LAN

2 x 10GbE SFP+ LAN ports (integrated)
2 x GbE LAN ports (Atheros^® AR8035)
1 x 10/100/1000 management LAN

Video

Audio

Storage

16 x 3.5” easy swappable HDD bays
Supports SATA III 6Gb/s

SATA

16 x SATA III 6Gb/s ports

SAS

RAID

Depends on OS RAID
Please refer to "training materials" in support & downloads page

Peripheral Drives

Expansion Slots

Internal I/O

Front I/O

1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x LAN LED
16 x HDD location LEDs
1 x HDD access LED

Rear I/O

2 x SFP+
3 x RJ45
1 x Micro USB
1 x Power button with LED
1 x System status LED

Backplane Board

TPM

Power Supply^[#1]

1 x 400W PSU
80 PLUS Gold
100~240V AC

System Management

Aspeed^® AST1250 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)

OS Compatibility

Embedded Linux

System Fans

5 x 40x40x28mm (18’000rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Weight

Barebone: 11.4 kg (without drives)
Barebone with packaging: 19.4 kg (without drives)

Packaging Dimensions

1141 x 745 x 259 mm

Packaging Content

1 x D120-S3G
1 x Rail kit
1 x HDD remove tool

Part Numbers

Barebone with rail kit: 6ND120S3GMR-00
Rail kit: 25HB2-3A0201-C0R
Memory module: 25SD5-6004G2-I0R
Fan module: 25ST2-442826-D0R
Power supply: 25EP0-20400H-D0S

[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
