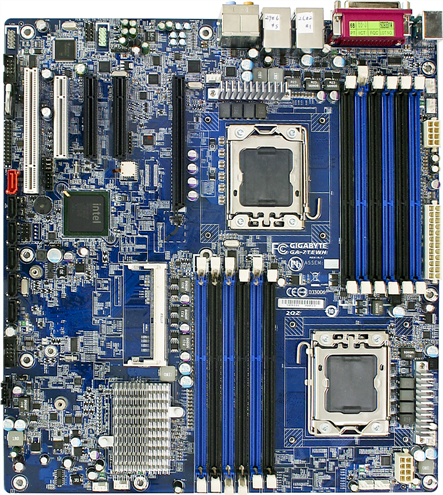

GA-7TEWH1 (rev. 1.1)
Intel 5520 chipset + ICH10R
- High performance board delivers the power of multi-core, dual-sockets to the demanding workstation environment.
- Up to two Intel Xeon processors 5500 or 5600 series.
- Up to 12 DIMMs of registered or unbuffered DDR3 memory.
- High-speed PCIe 2.0 x16 slot for professional graphic adapter.
- Well-rounded expansion: one PCIe 2.0 x16, two PCIe 2.0 x4, one PCIe x4, and one PCI.
- USB 2.0 and IEEE 1394a ports offer sustained, high-performance connectivity to external devices.
1/2
SPECIFICATIONS
Form Factor
- SSI EEB (12” x 13”)
CPU
- Dual Intel Xeon processor 5500/ 5600 series
Chipset
- Intel 5520 chipset with Intel ICH10R
Memory
- 12 DDR3 DIMM sockets support registered or ECC unbuffered
- 6 channel native 1066/ 1333MHz
LAN
- 2 Gigabit LAN (Intel 82567LM + Intel 82574L)
Audio
- 7.1+2 channel HD audio (Realtek ALC889A)
SATA
- 6 ports SATA 3Gbps via Intel ICH10R
RAID
- Intel SW RAID 0/ 1/ 5/ 10
- Optional 8 ports SAS 6Gbps HW RAID add-on card: GC-RLD087-RH/ GC-RLE087-RH
- Optional 8 ports SAS 6Gbps SW RAID add-on card: FC-RLD086-RH/ GC-RLE086-RH
Expansion Slots
- 1 PCI Express 2.0 x16
- 2 PCI Express 2.0 x4 (x8 mechanical)
- 1 PCI Express 1.0 x4 (x8 mechanical)
- 1 PCI
- 1 SO-DIMM IF
Reference Numbers
- 9M7TEWH1NR-DY
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
